Trek Domane SL 5 Gen 4

Name: Trek Domane SL 5 Gen 4
Brand: Trek
SKU: 15856
Availability: InStock

Brands: Trek

SKU: N/A

R70 000.00

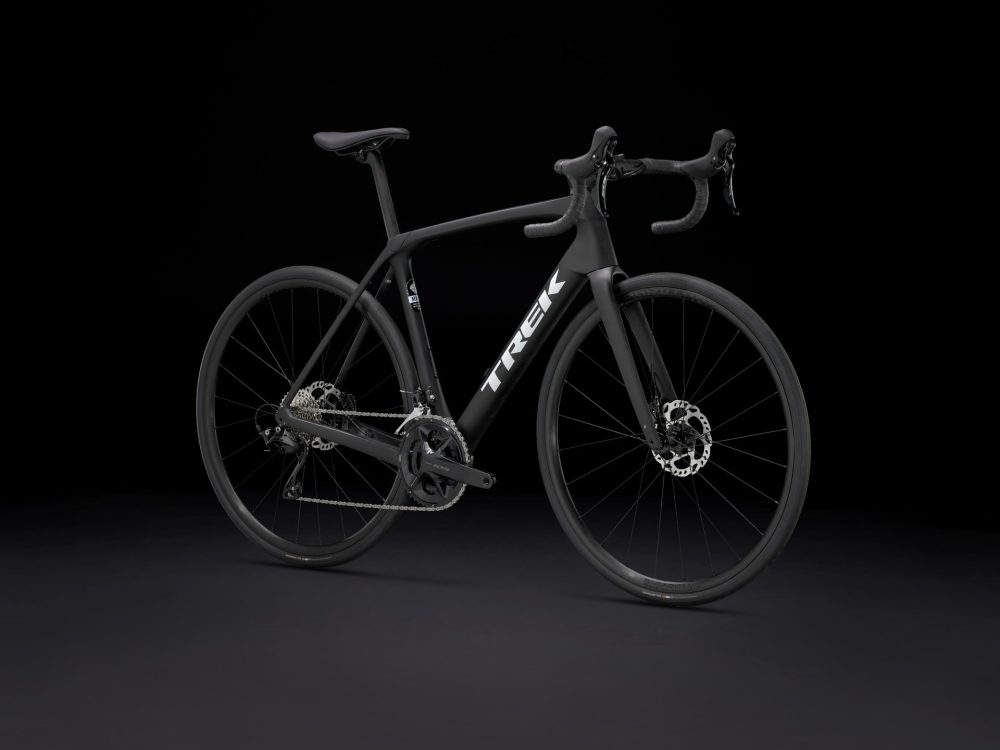

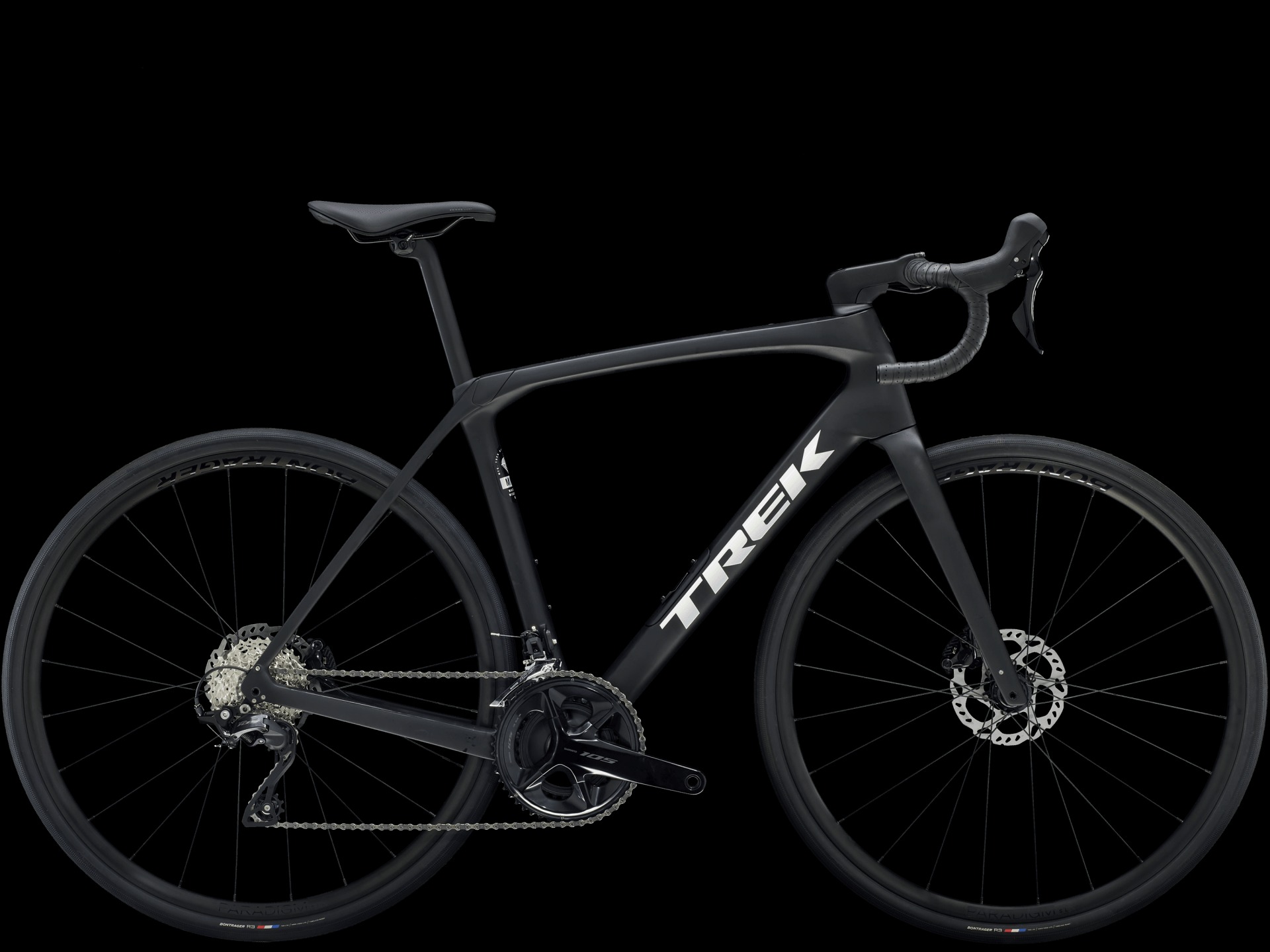

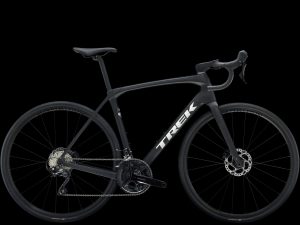

The Domane SL 5 is ready to comfortably take on rough roads and long miles in comfort. The lightweight 500 Series OCLV Carbon frame has rear IsoSpeed to smooth out bumps in the road and reduce fatigue, and an integrated cockpit for a set-up that looks as good as it feels. It features a reliable Shimano 105 drivetrain, and an easy-access internal storage compartment for stowing ride essentials. Plus, lofty 38 mm tyre clearance lets you take on any road from tarmac to light gravel.

Size

Clear

Category: Road Bikes Brands: Trek

Description

You want a comfy and fast ride that’s built for the long haul, and prefer the feel of vibration-damping IsoSpeed and lightweight carbon. Rides might take you over smooth tarmac, rough roads and well beyond. You want a bike with wide tyre clearance to get you through it all.

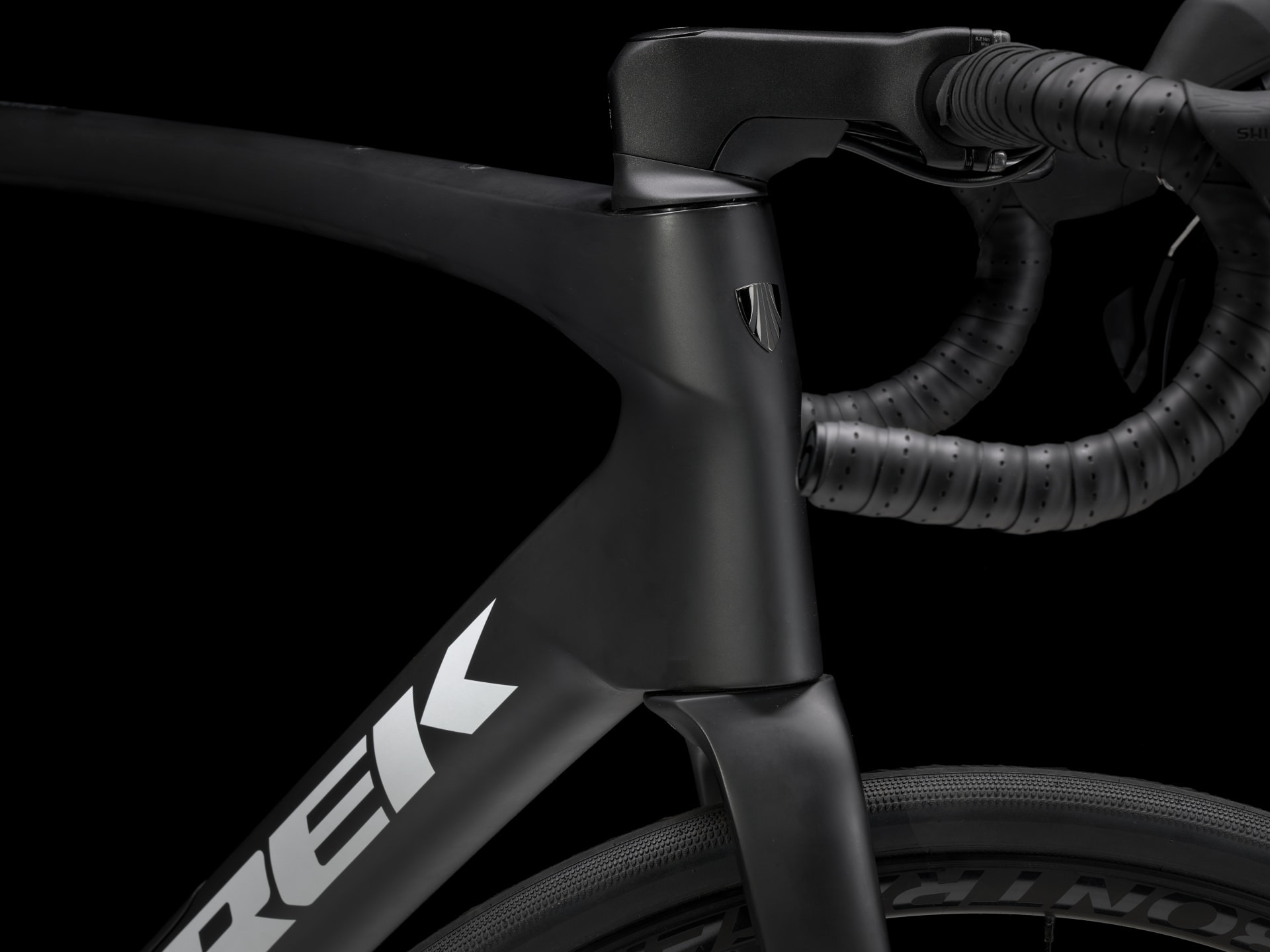

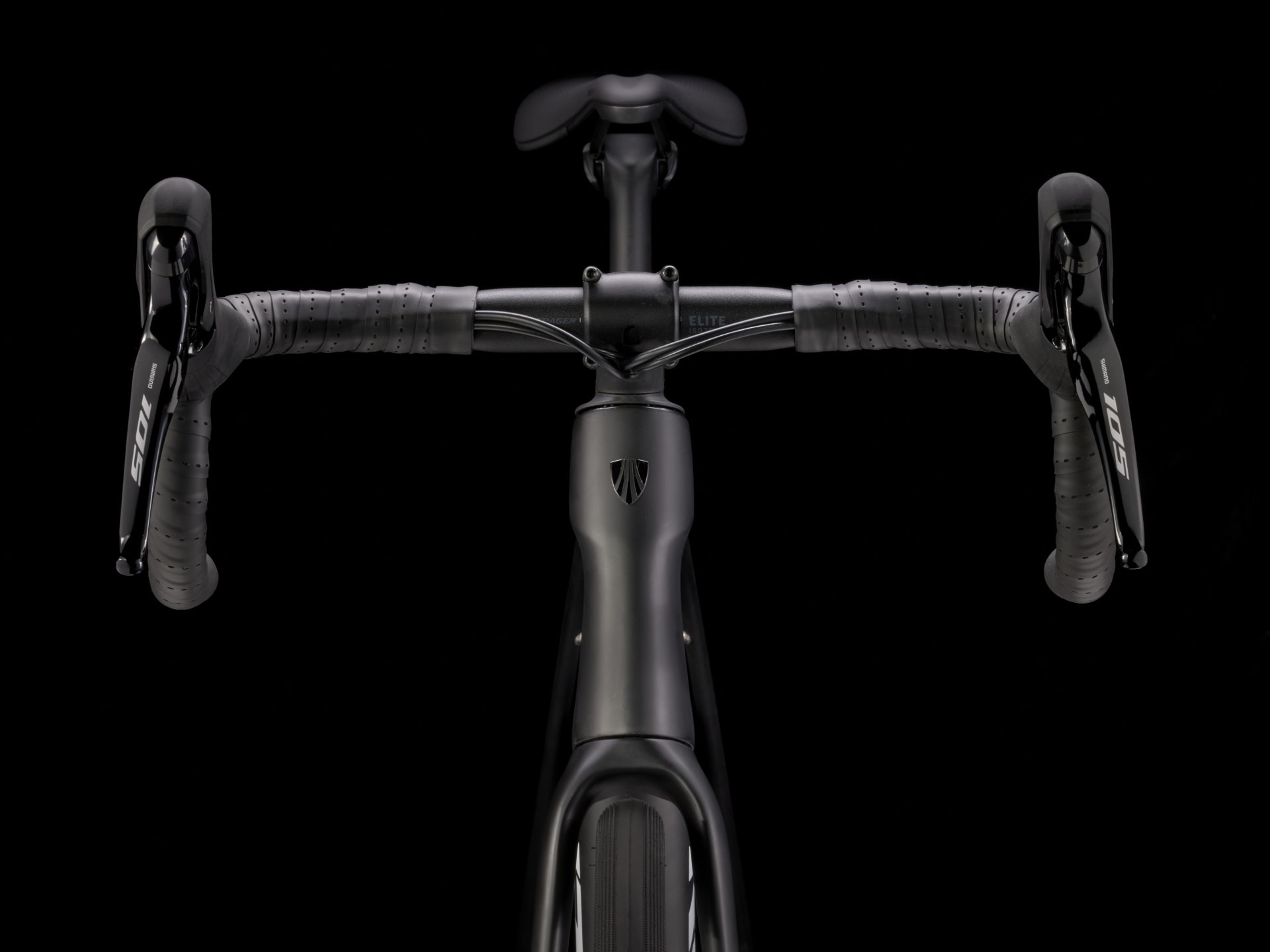

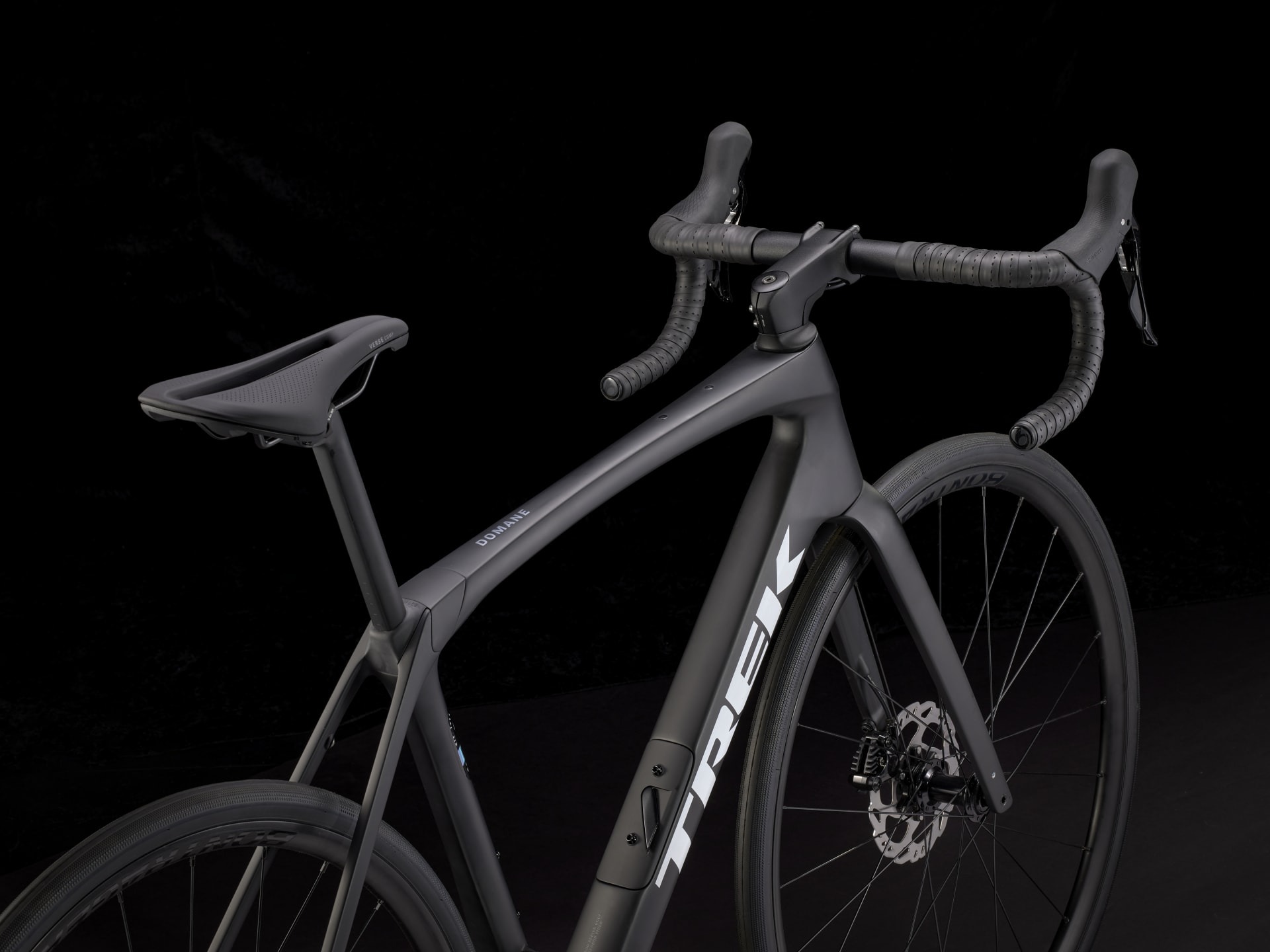

A light and refined 500 Series OCLV Carbon frame and fork with road-smoothing rear IsoSpeed, powerful flat-mount disc brakes, a full 2×12 Shimano 105 group set and tubeless-ready wheels with wider 700×32 tyres. An integrated cockpit, internal storage, top tube mounts and cable routing add to the bike’s capability and sleek look.

Carbon, comfort, capability. The Domane SL 5 is the dream bike for long rides. Its light-and-fast carbon frame, stable endurance geometry and road-smoothing rear IsoSpeed keep you comfortable through long miles. You also get the added advantage of a higher-end Shimano 105 drivetrain and powerful disc brakes that let you run wide tyres.

The Domane SL Gen 4’s rear IsoSpeed, integrated cables and aero Kammtail tube shapes come together for a fast, lightweight and road-smoothing ride
This bike is super versatile and equally suited to all-day adventures on the open road, club rides and racing

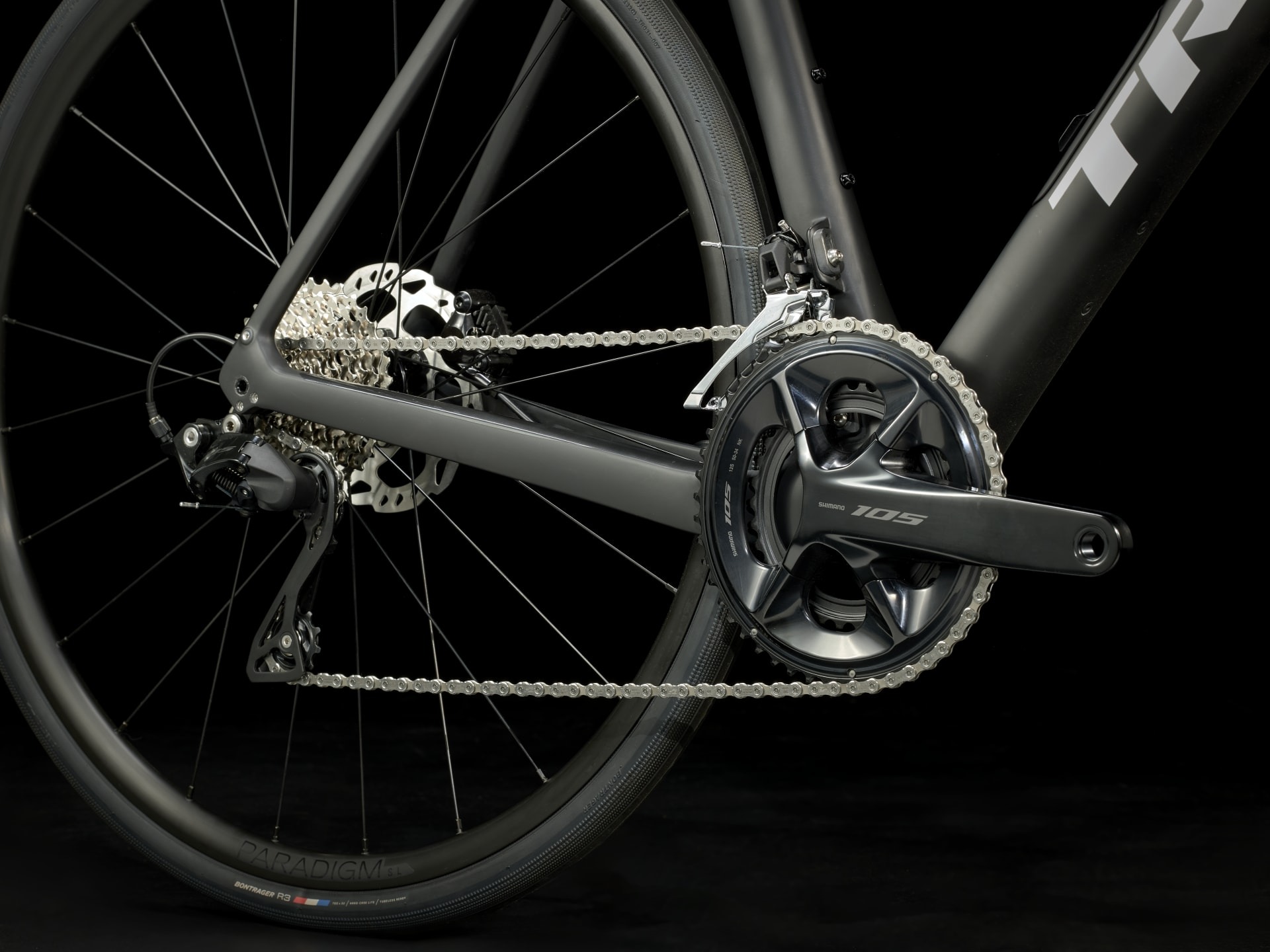

The Shimano 105 group set is reliable and won’t break the bank
Road-smoothing IsoSpeed and clearance for up to 38 mm tyres absorbs fatiguing bumps in the road for a smoother, more comfortable ride

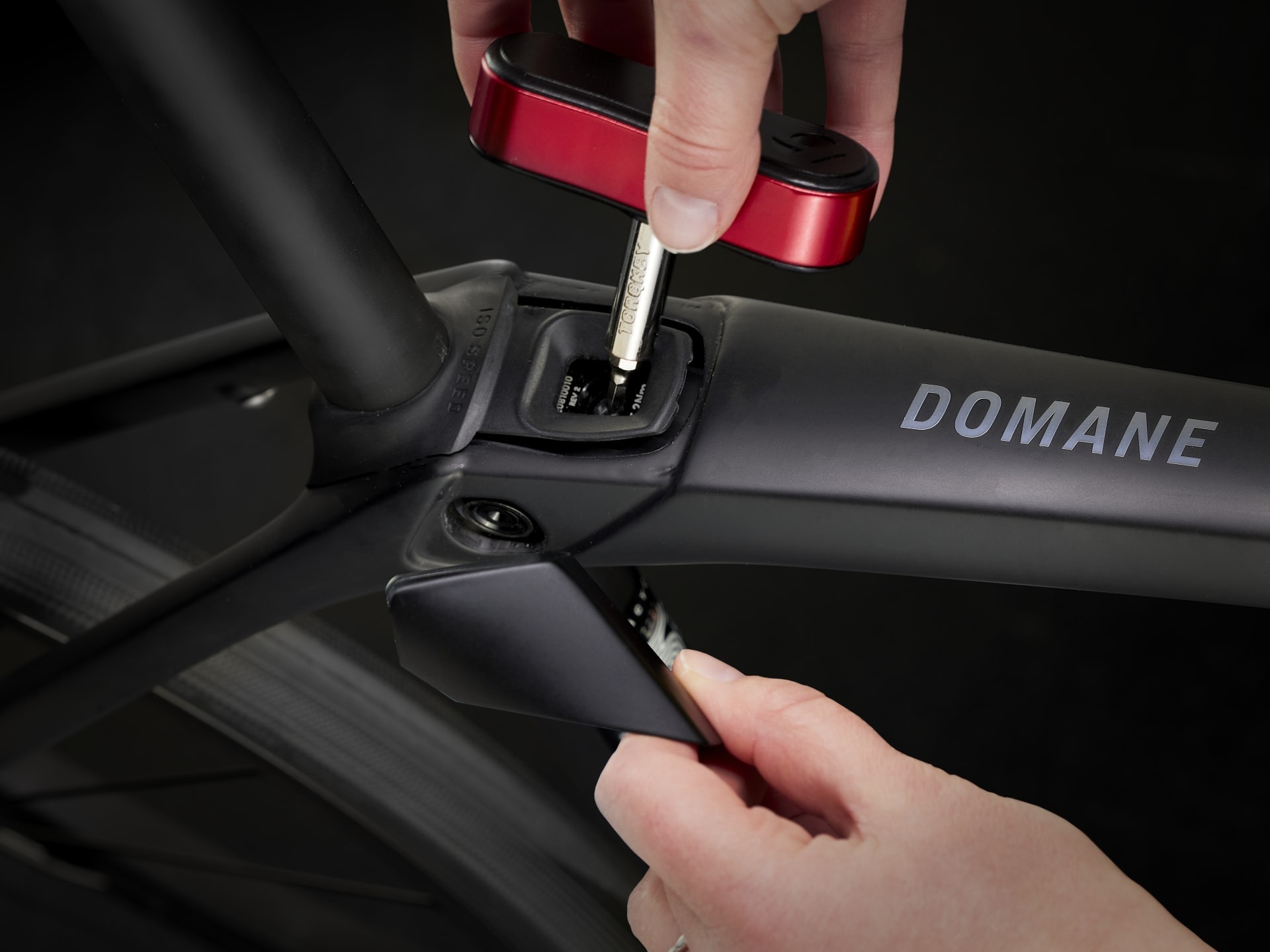

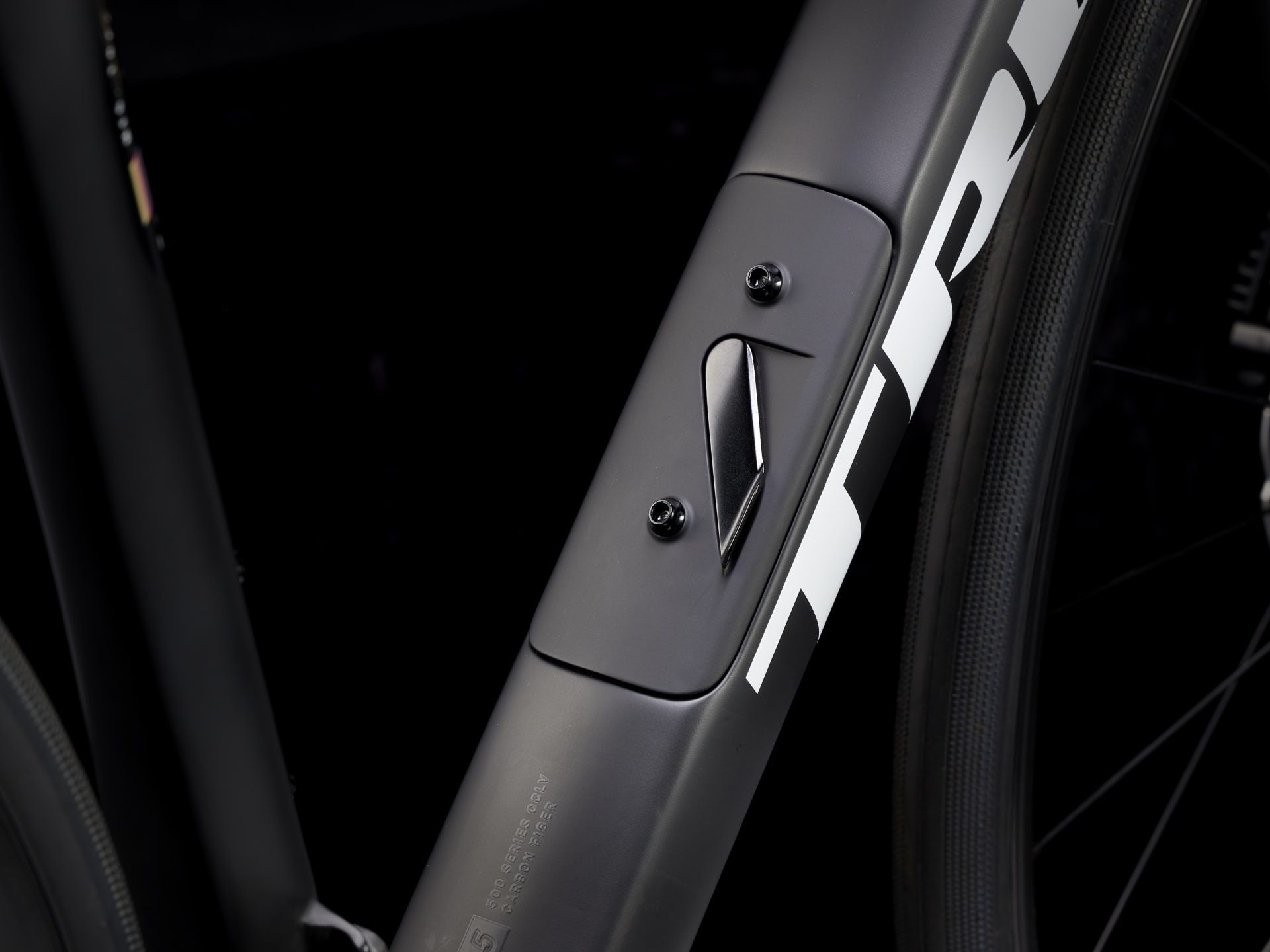

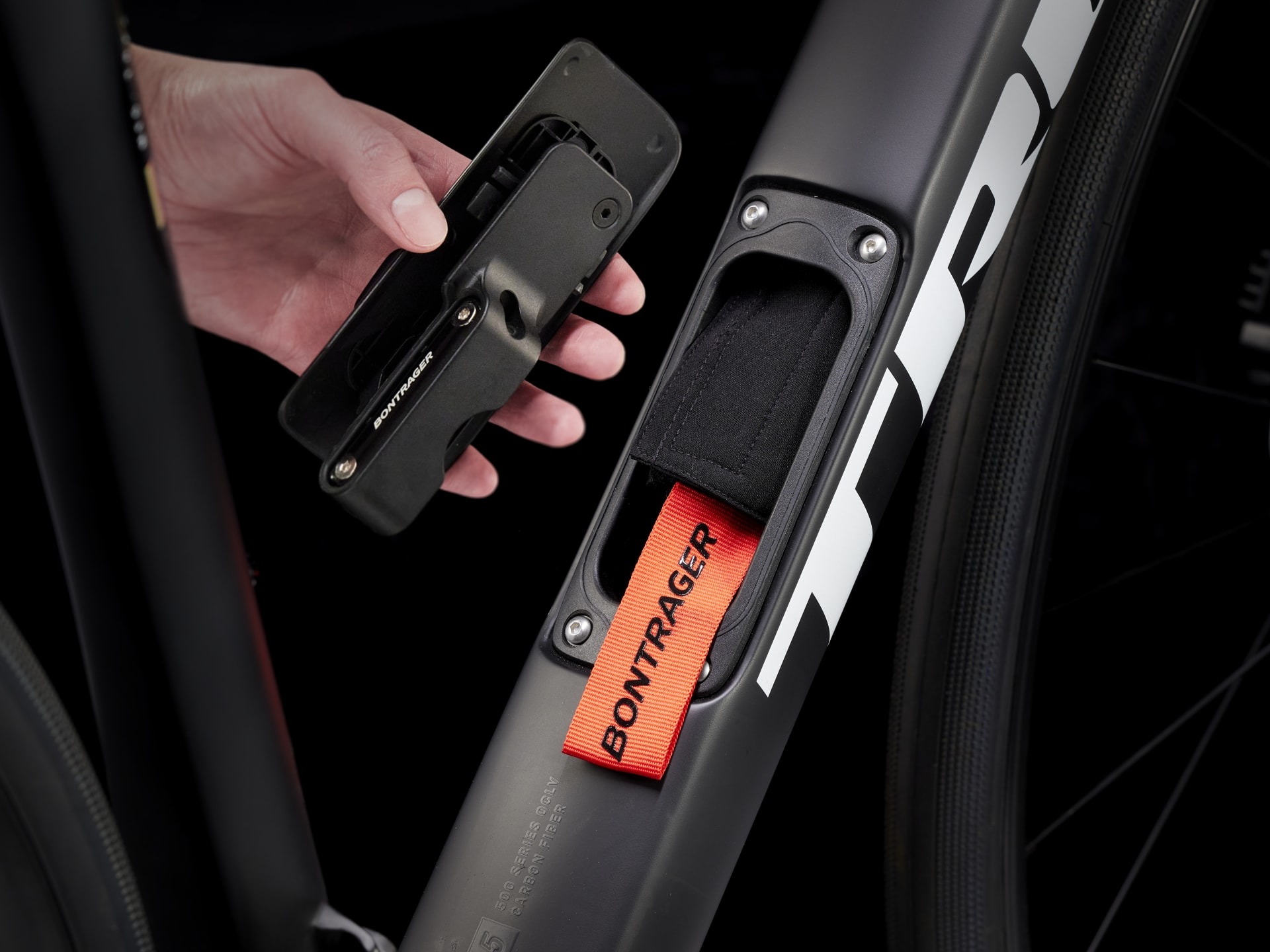

A convenient internal storage compartment gives you a versatile spot for stowing tools and gear, while top tube mounts let you cleanly bolt on a bag for day-long adventures

Additional information

SPECIFICATIONS

*Please note – spec applies to all sizes unless listed separately

Frameset

Frame: 500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, mudguard mounts, flat mount disc, 142×12 mm thru axle

Fork: Domane SL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12×100 mm thru axle

Weight

Weight: 56 – 9.02 kg / 19.89 lbs (with TLR sealant, no tubes)

Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Drivetrain

Shifter: Shimano 105 R7120, 12-speed

Front derailleur: Shimano 105 R7100, braze-on, down swing

Rear derailleur: Shimano 105 R7100, 36T max cog

*Crank

Size: 47 – Shimano 105 R7100, 50/34, 165 mm length

Size: 50, 52 – Shimano 105 R7100, 50/34, 170 mm length

Size: 54, 56 – Shimano 105 R7100, 50/34, 172.5 mm length

Size: 58, 60 – Shimano 105 R7100, 50/34, 175 mm length

Bottom bracket: Praxis, T47 threaded, internal bearing

Cassette: Shimano 105 7101, 11-34, 12-speed

Chain: Shimano SLX M7100, 12-speed

Max. chainring size: 1x: 48T, 2x: 52/36

Wheels

Hub front: Bontrager alloy, sealed bearing, CenterLock disc, 100×12 mm thru axle

Skewer front: Bontrager Switch thru-axle, removable lever

Hub rear: Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142×12 mm thru axle

Skewer rear: Bontrager Switch thru-axle, removable lever

Rim: Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve

Tyre: Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700×32 mm

Tyre part: Bontrager TLR sealant, 180 ml/6 oz

Rim strip: Bontrager TLR

Max tyre size: 38mm without mudguards, 35mm with mudguards

Components

*Saddle

Size: 47, 50, 52 – Verse Short Comp, steel rails, 155 mm width

Size: 54, 56, 58, 60 – Verse Short Comp, steel rails, 145 mm width

*Seatpost

Size: 47, 50, 52, 54, 56 – KVF aero carbon seat post, 20 mm offset, 280 mm length

Size: 58, 60 – KVF aero carbon seat post, 20 mm offset, 320 mm length

*Handlebar

Size: 47 – Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 36 cm width

Size: 50 – Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 38 cm width

Size: 52 – Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 40 cm width

Size: 54, 56 – Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 42 cm width

Size: 58, 60 – Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 44 cm width

Handlebar tape: Bontrager Supertack Perf tape

*Stem

Size: 47 – Trek RCS Pro, -7-degree, 70 mm length

Size: 50 – Trek RCS Pro, -7-degree, 80 mm length

Size: 52, 54 – Trek RCS Pro, -7-degree, 90 mm length

Size: 56, 58 – Trek RCS Pro, -7-degree, 100 mm length

Size: 60 – Trek RCS Pro, -7-degree, 110 mm length

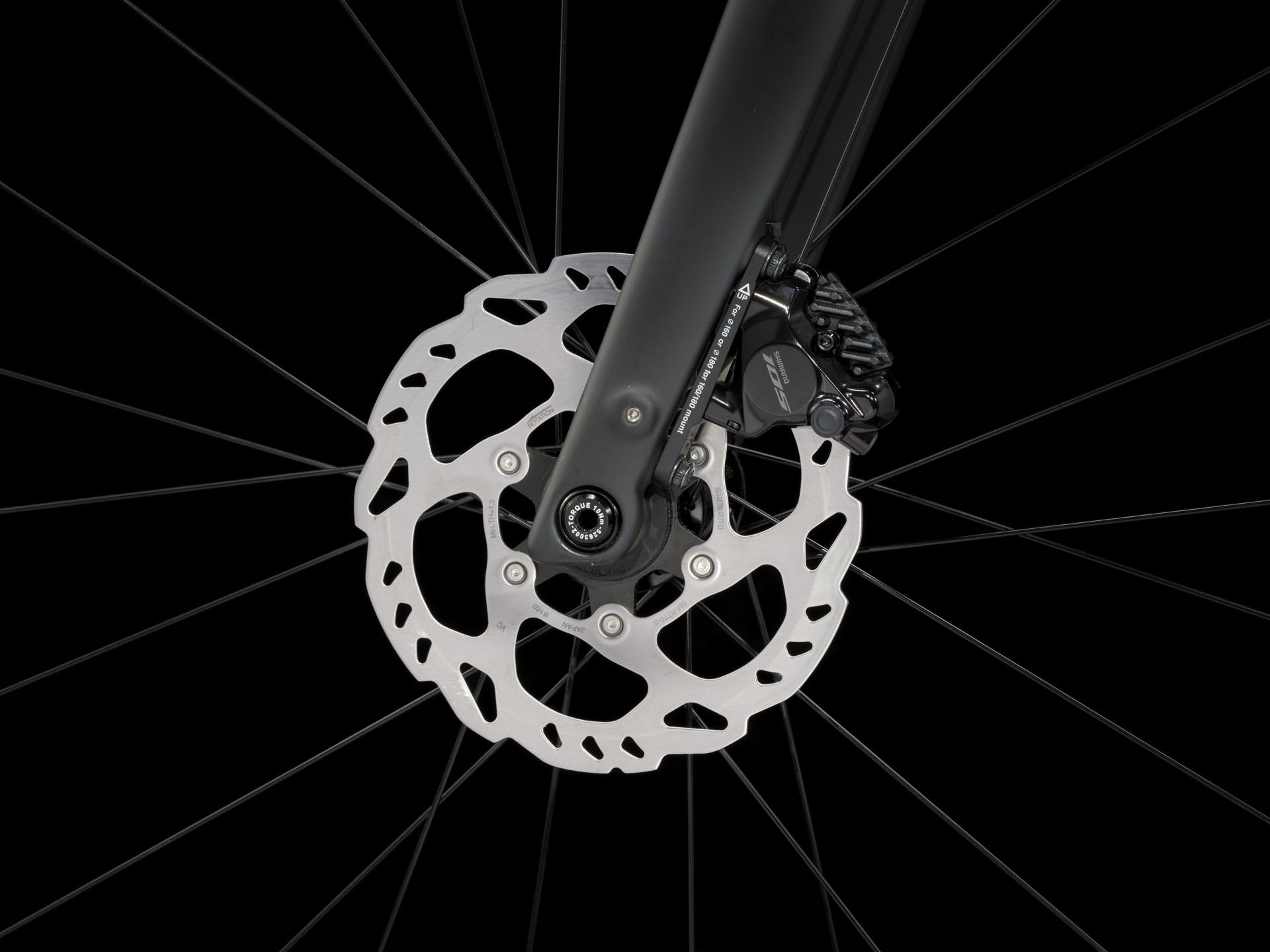

Brake: Shimano 105 hydraulic disc, flat mount

Brake rotor: Shimano RT70, CentreLock, 160 mm

Rotor size: Max brake rotor sizes: 160 mm front and rear

Accessories

Bag: Bontrager BITS Internal Frame Storage Bag

Trek reserves the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
