SPECIFICATIONS
*Please note – spec applies to all sizes unless listed separately
Frameset: 500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142×12 mm chamfered thru axle

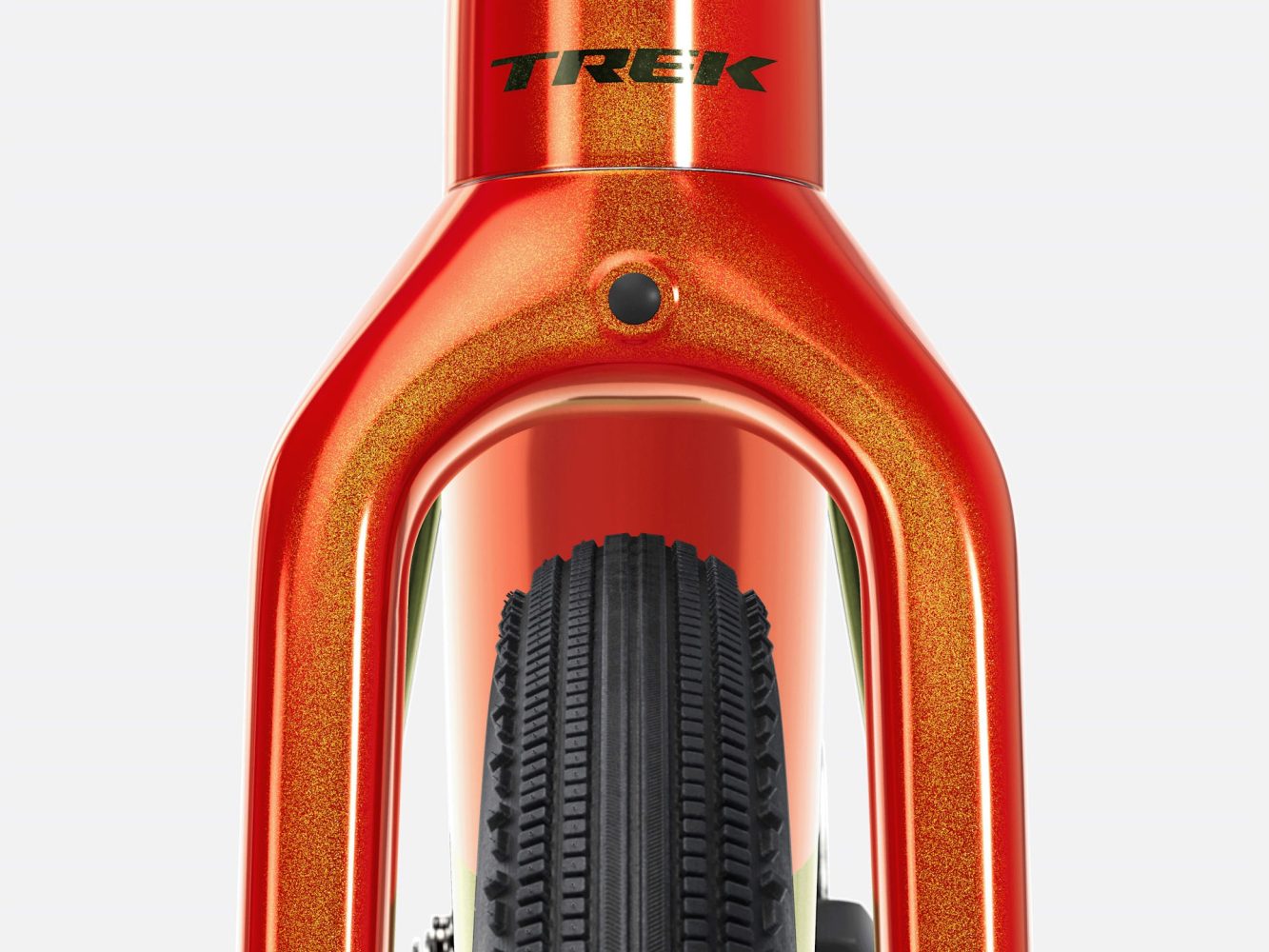

Fork: Checkpoint full carbon, tapered carbon steerer, mudguard mounts, triple rack mounts, flat-mount disc, 12×100 mm chamfered thru axle
Weight: ML – 9.50 kg/20.95 lb (with TLR sealant, no tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
E-system
Battery: SRAM AXS battery pack (with charger)

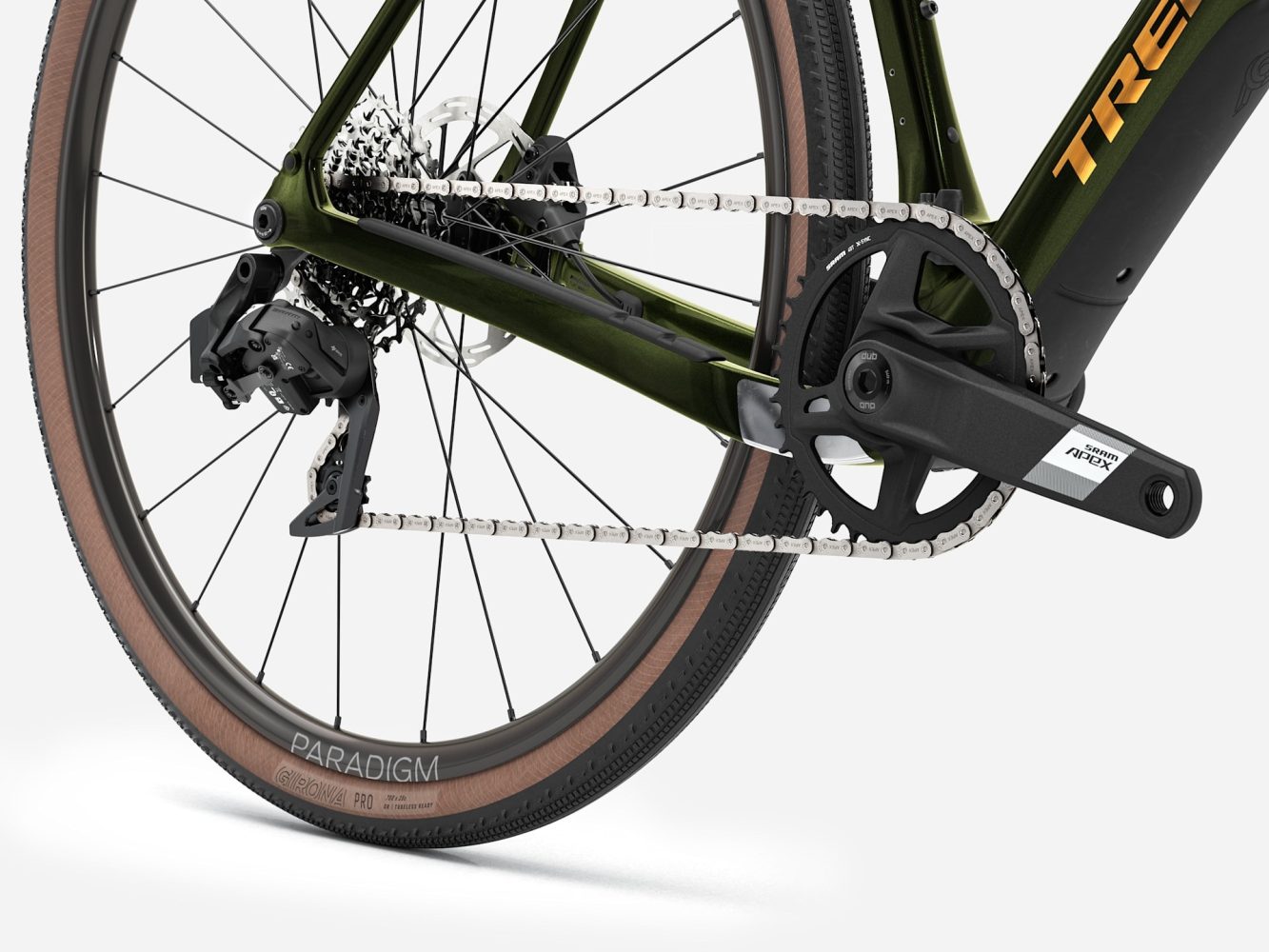

Drivetrain
Shifter: SRAM Apex AXS, 12-speed
Rear derailleur: SRAM Apex XPLR eTap AXS, 44T max cog
*Crank
XS, S: SRAM Apex 1, 40T, DUB Wide, 165 mm length
M: SRAM Apex 1, 40T, DUB Wide, 170 mm length
ML, L: SRAM Apex 1, 40T, DUB Wide, 172.5 mm length
XL: SRAM Apex 1, 40T, DUB Wide, 175 mm length
Bottom bracket: SRAM DUB Wide, T47 threaded, internal bearing
Cassette: SRAM XPLR PG-1231, 11-44, 12-speed
Chain: SRAM Apex, 12-speed
Max. chainring size: 1x: 44 | 2x: 46/30
Wheels
Wheel front: Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 100×12 mm thru axle
Wheel rear: Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 142×12 mm thru axle
Skewer front: Bontrager Switch chamfered thru axle
Skewer rear: Bontrager Switch chamfered thru axle, removable lever
Tyre: Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700×42 mm
Tyre part: Bontrager TLR sealant, 180 ml/6 oz
Rim strip: Bontrager TLR
Max tyre size: 50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)
Components
Saddle
XS, S: Verse Short Comp, steel rails, 155 mm width
M, ML, L, XL: Verse Short Comp, steel rails, 145 mm width
Seatpost: Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length

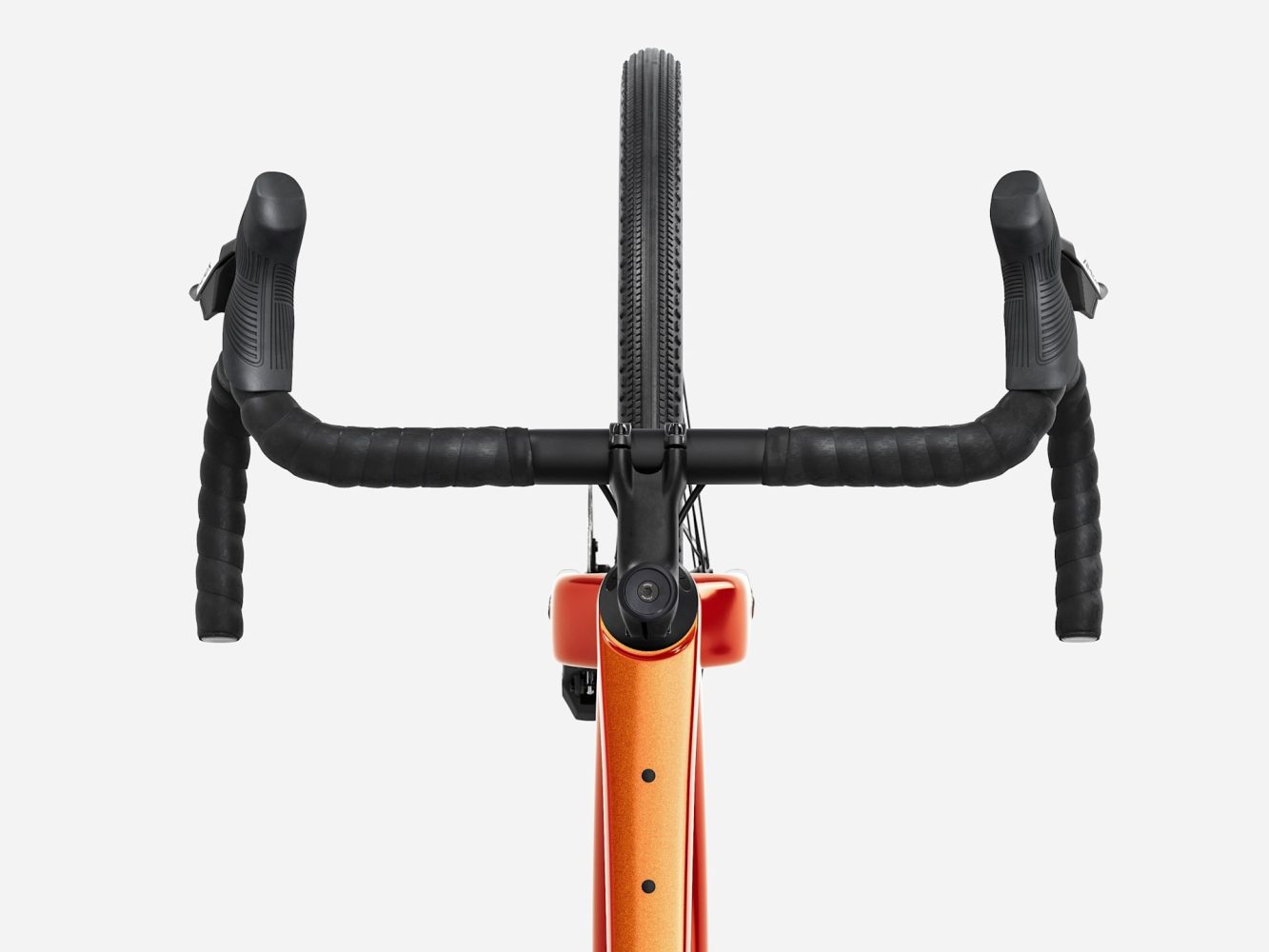

*Handlebar
XS: Bontrager Elite Gravel, alloy, 40 cm width
S, M: Bontrager Elite Gravel, alloy, 42 cm width
ML, L: Bontrager Elite Gravel, alloy, 44 cm width
XL: Bontrager Elite Gravel, alloy, 46 cm width
Handlebar tape: Bontrager Supertack Perf tape
*Stem
XS: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
S: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
M, ML: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
L: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
XL: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Brake rotor: SRAM Paceline, rounded, CentreLock, 160 mm
Rotor size: Max brake rotor sizes: 180 mm front and rear
Accessories

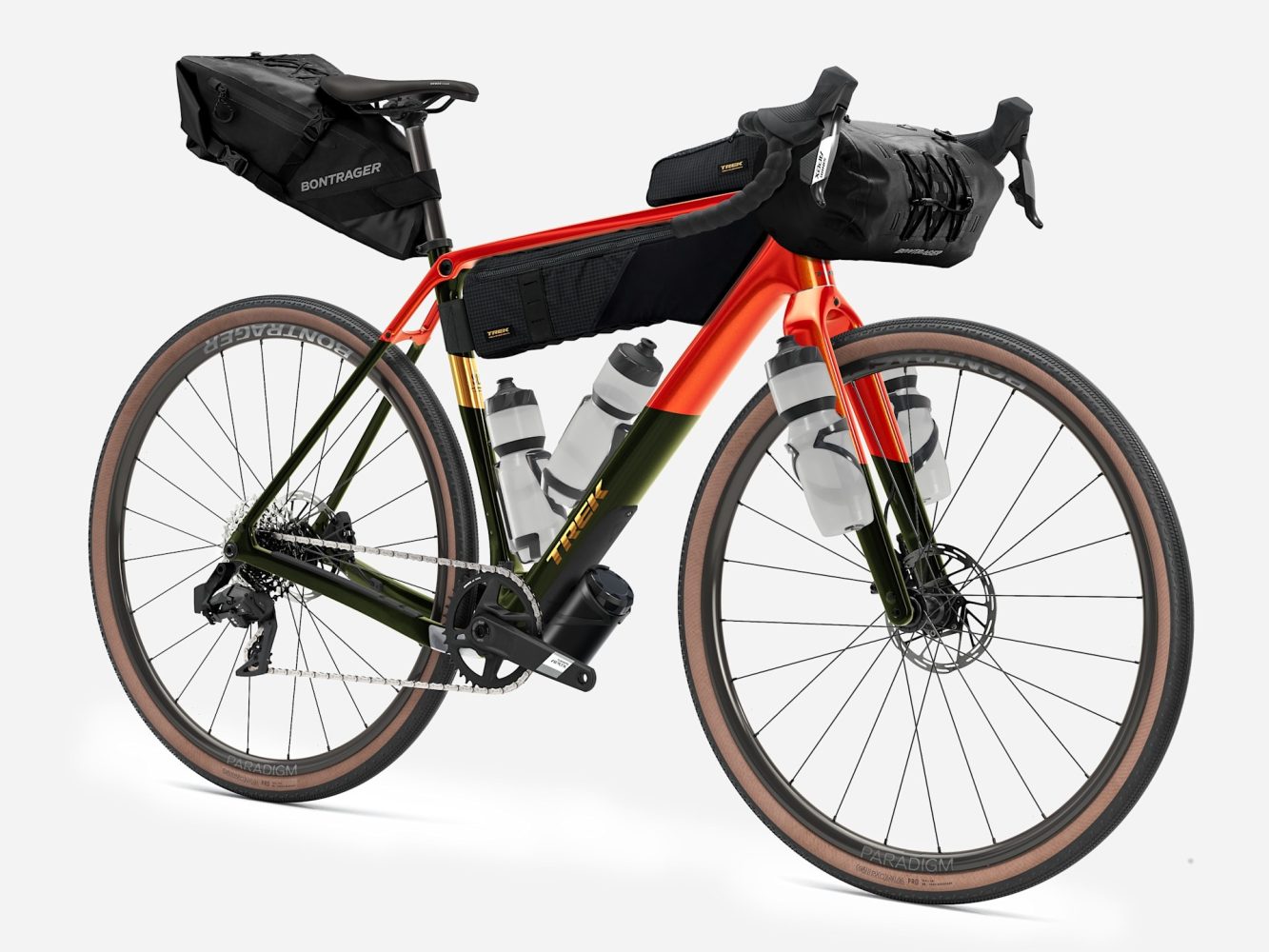

Bag: Bontrager BITS Internal Frame Storage Bag
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
