SPECIFICATIONS

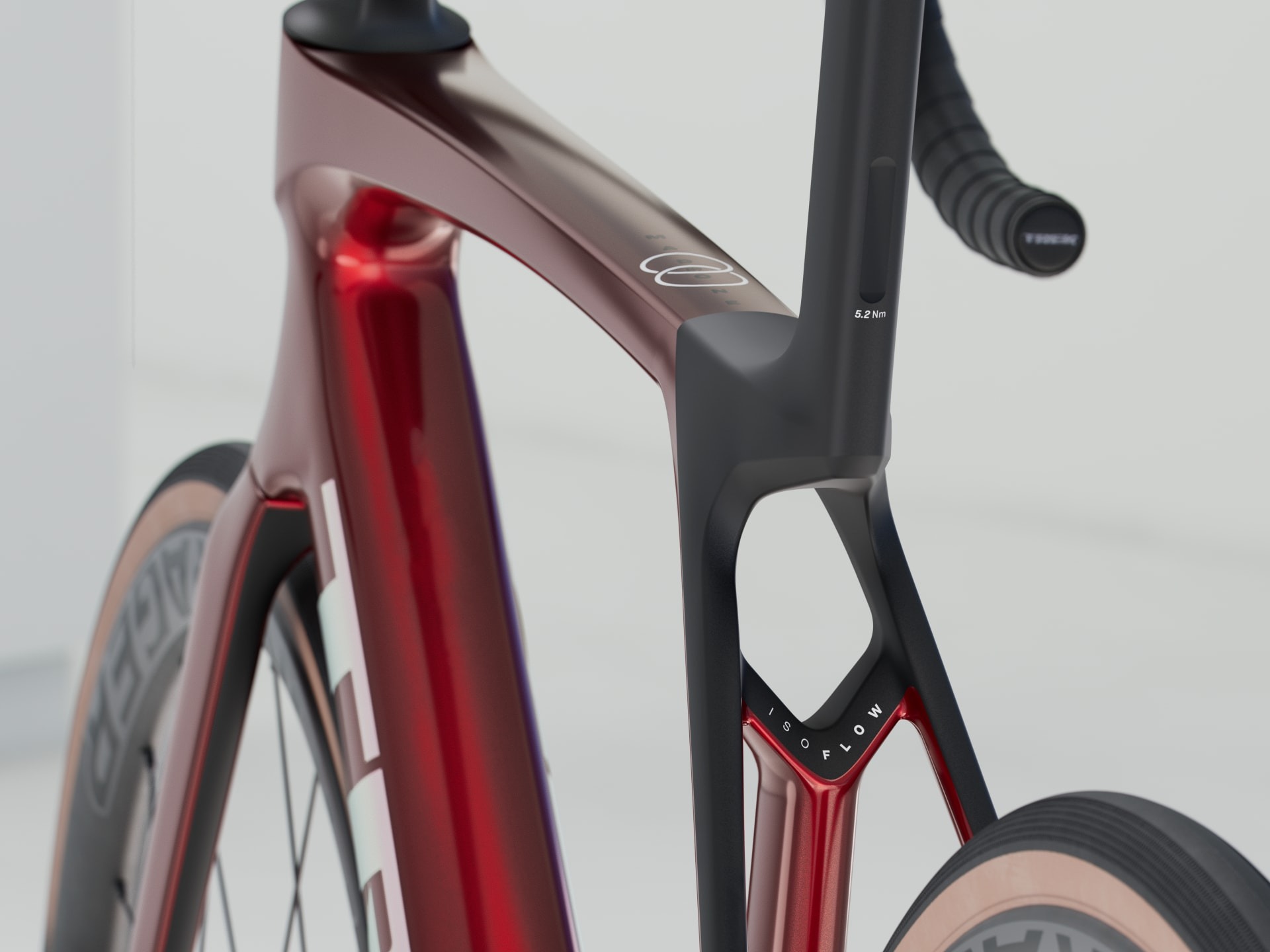

Frame: 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142×12 mm thru axle
Fork: Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle
Weight
Weight: ML – 8.43 kg / 18.59 lbs (with TLR sealant, no tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
E-system
Battery SRAM eTap battery pack (with charger)

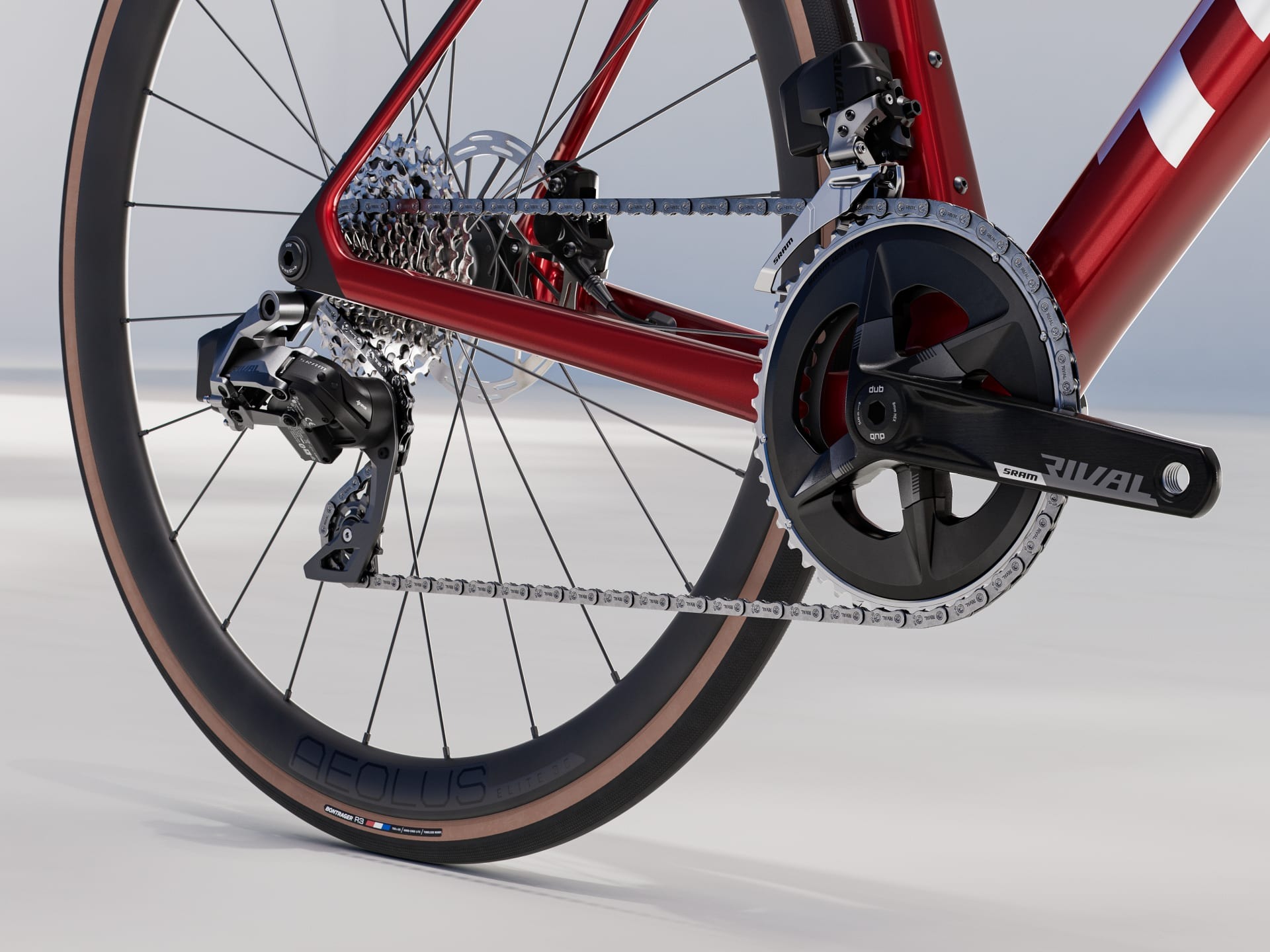

Drivetrain
Shifter: SRAM Rival eTap AXS, 12-speed
Front derailleur: SRAM Rival D1 AXS, braze-on
Rear derailleur: SRAM Rival AXS
*Crank
Size XS, S: SRAM Rival AXS w/ power meter, 48/35, DUB, 165 mm length
Size M: SRAM Rival AXS w/ power meter, 48/35, DUB, 170 mm length
Size ML, L: SRAM Rival AXS w/ power meter, 48/35, DUB, 172.5 mm length
Size XL: SRAM Rival AXS Power Meter, 48/35, DUB, 175 mm length
Bottom bracket: SRAM DUB, T47 threaded, internal bearing
Cassette: SRAM XG-1250, 10-36, 12-speed
Chain: SRAM Rival, 12-speed
Max. chainring size 1x: 54T, 2x: 56/43
Wheels
Wheel Front: Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35 mm rim depth, 100×12 mm thru axle
Wheel Rear: Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142×12 mm thru-axle
Skewer Front: Bontrager Switch chamfered thru axle, removable lever
Skewer Rear: Bontrager Switch chamfered thru axle, removable lever
Tyre: Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700×28 mm
Max Tyre Size: 32 mm (as measured, see manual for details)
Saddle
Size XS, S: Bontrager Aeolus Comp, steel rails, 155 mm width
Size M, ML, L, XL: Bontrager Aeolus Comp, steel rails, 145 mm width
Seatpost
Size XS, S, M, XL: Madone aero carbon seat post, 0 mm offset, short length
Size ML, L: Madone aero carbon seat post, 0 mm offset, long length

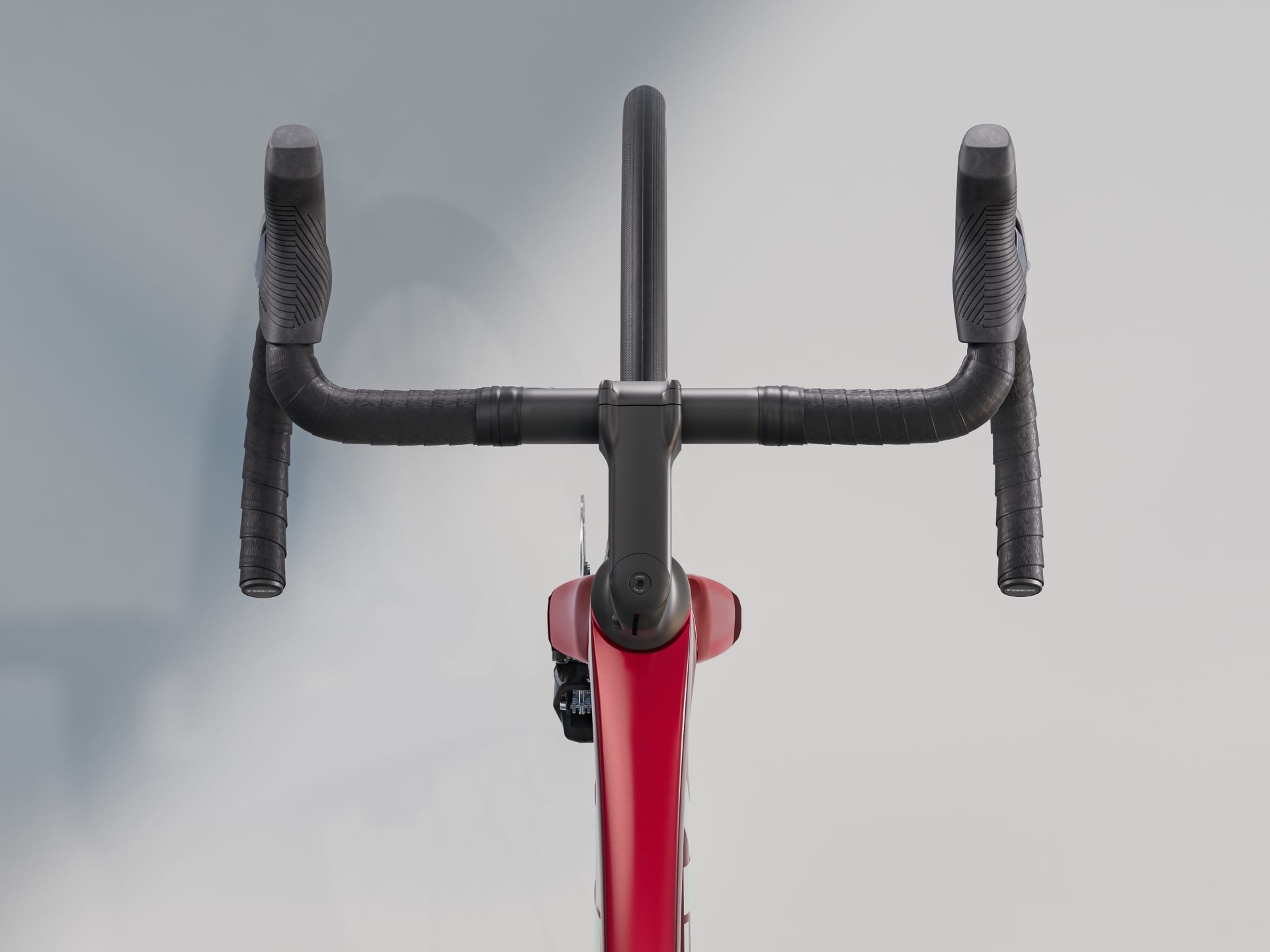

Handlebar
Size XS: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width
Size S, M: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width
Size ML, L: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width
Size XL: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width
Handlebar tape: Trek EcoTack, black
Stem
Size XS: Trek RCS Pro, -7-degree, 80 mm length
Size S, M: Trek RCS Pro, -7-degree, 90 mm length
Size ML, L: Trek RCS Pro, -7-degree, 100 mm length
Size XL: Trek RCS Pro, -7-degree, 110 mm length
Brake rotor: SRAM Paceline, rounded, CentreLock, 160 mm
Rotor size: Max brake rotor sizes: 180 mm front, 160 mm rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
