SPECIFICATION
*Please note – spec applies to all sizes unless listed separately
Frameset

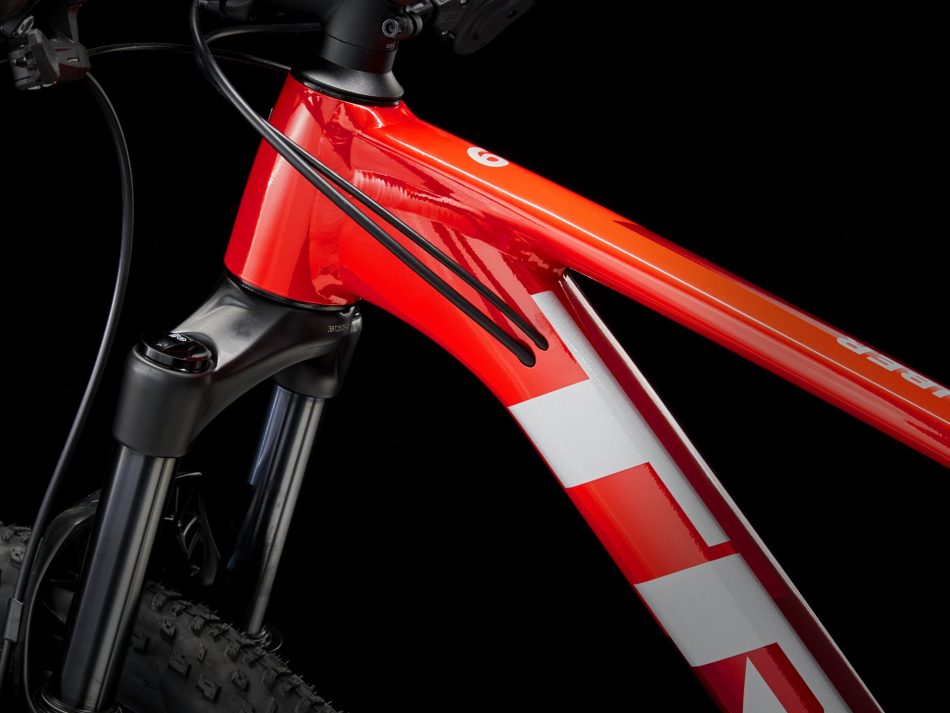

Frame: Alpha Platinum Aluminium, tapered head tube, internal routing, BSA 73, hidden rack and kickstand mounts, UDH, Boost148, 12 mm thru axle

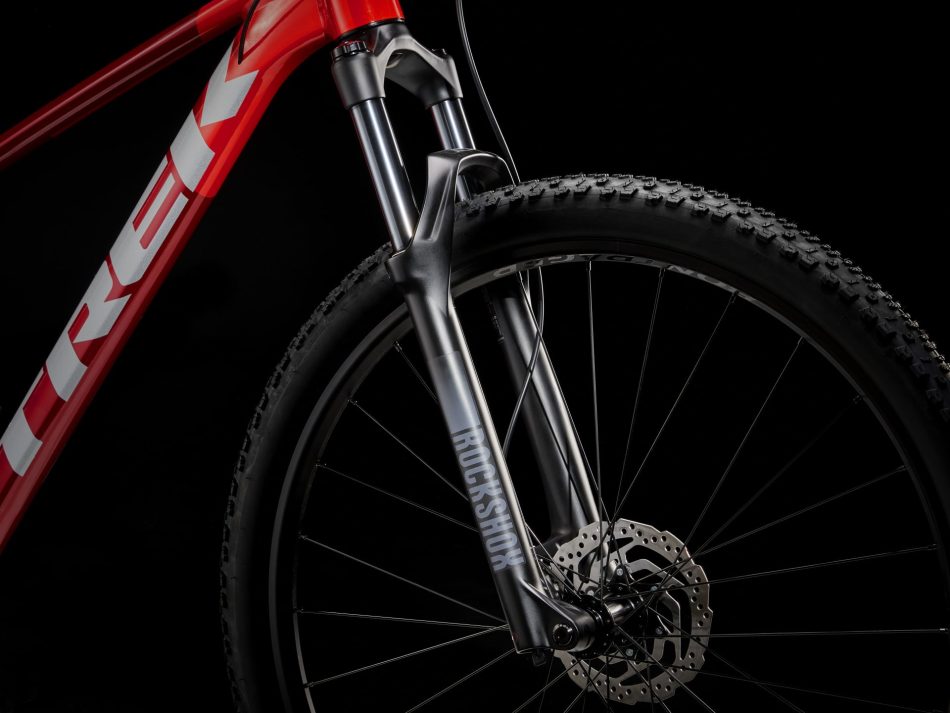

Fork: RockShox Judy Silver, Solo Air spring, TurnKey lockout, tapered steerer, 42mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
Max compatible fork travel 130 mm (540 mm axle-to-crown)
Wheels
Hub front: Shimano TC500 alloy, CentreLock, 110×15 mm thru axle
Hub rear: Shimano TC500 alloy, CentreLock, 148×12 mm thru axle
Skewer rear: Bontrager Switch thru axle, removable lever
Rim: Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve

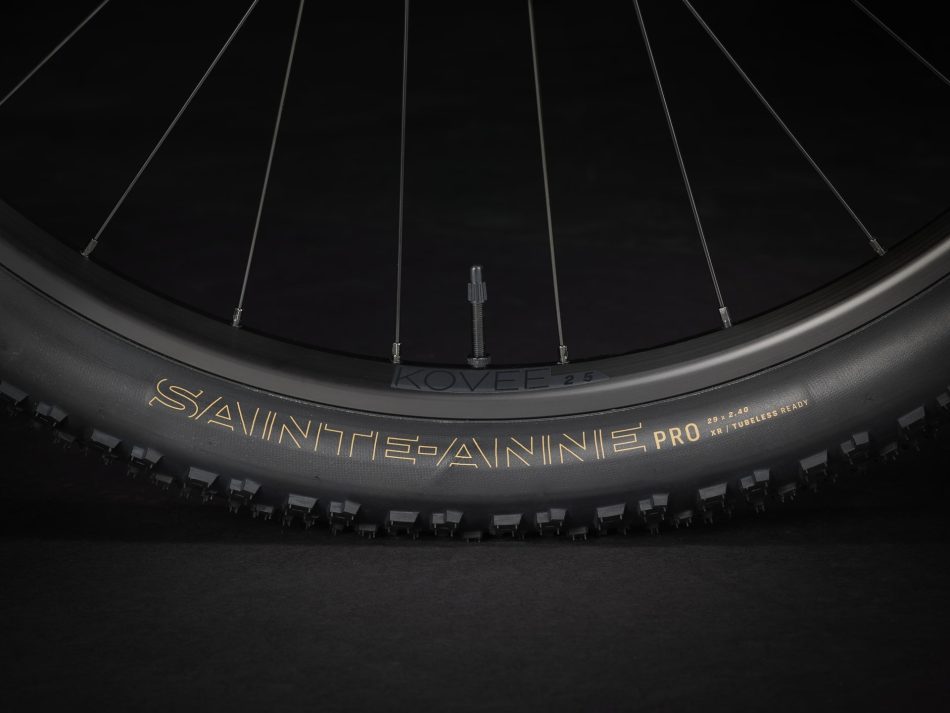

Tyre: Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29×2.20″
Tyre part: Bontrager TLR sealant, 180 ml/6 oz
Rim strip: Bontrager TLR
Max tyre size – Frame: 29×2.40″, Fork: See manufacturer
Drivetrain
Shifter: Shimano Deore M6100, 12-speed

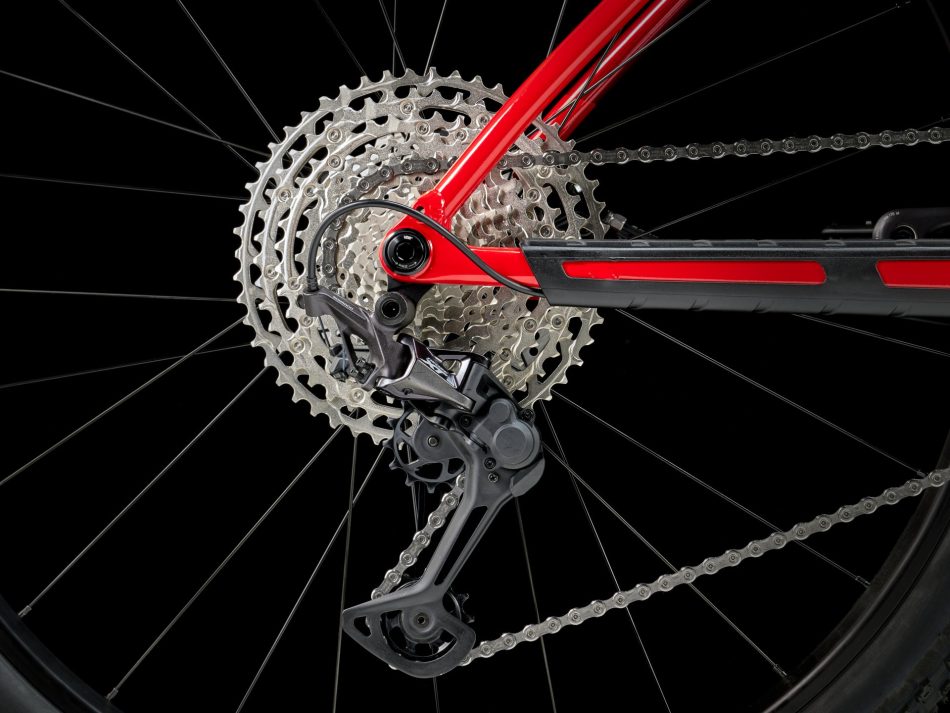

Rear derailleur: Shimano XT M8100, long cage

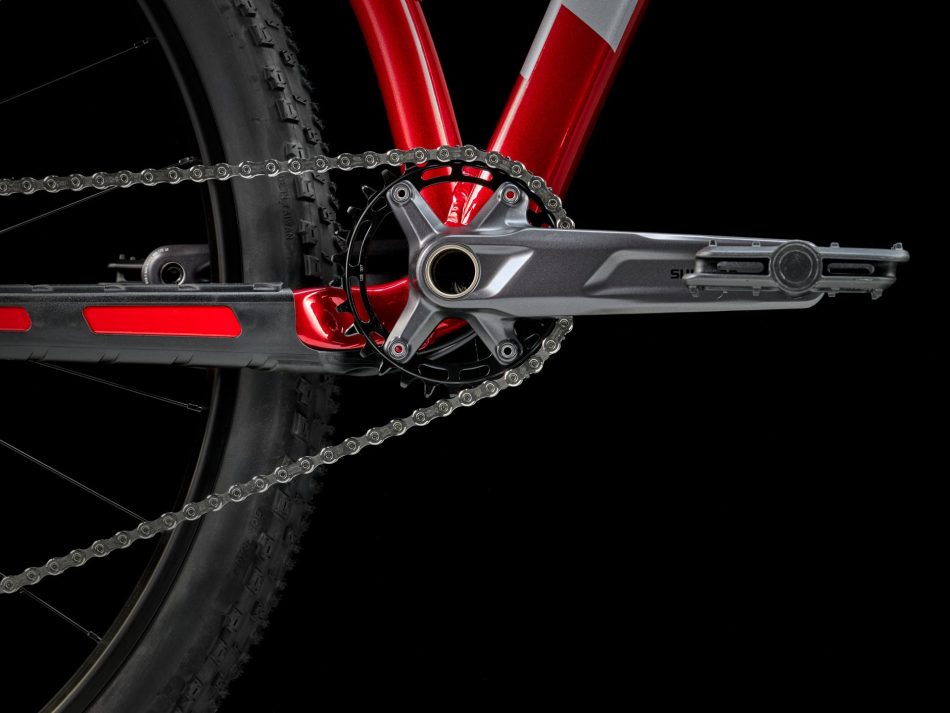

*Crank
Size S, M: Shimano MT512, 30T ring, 55 mm chain line, 170 mm length
Size ML, L, XL: Shimano MT512, 30T ring, 55 mm chain line, 175 mm length
Bottom bracket: Shimano BB-MT501 BSA
Cassette: Shimano Deore M6100, 10-51, 12-speed
Chain: Shimano Deore M6100, 12-speed
Pedal: VP-536 nylon platform
Max. chainring size 1x: 34T (55 mm chain line), min 30T (52 mm chain line)
Components
Saddle: Verse Short, steel rails, 145 mm width
*Seatpost
Size S, M: Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length
Size ML, L: Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length
Size XL: Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length
*Handlebar
Size S, M: Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width
Size ML, L, XL: Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width

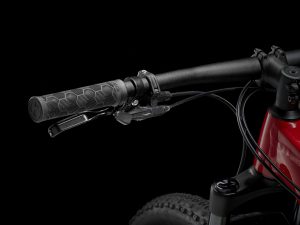

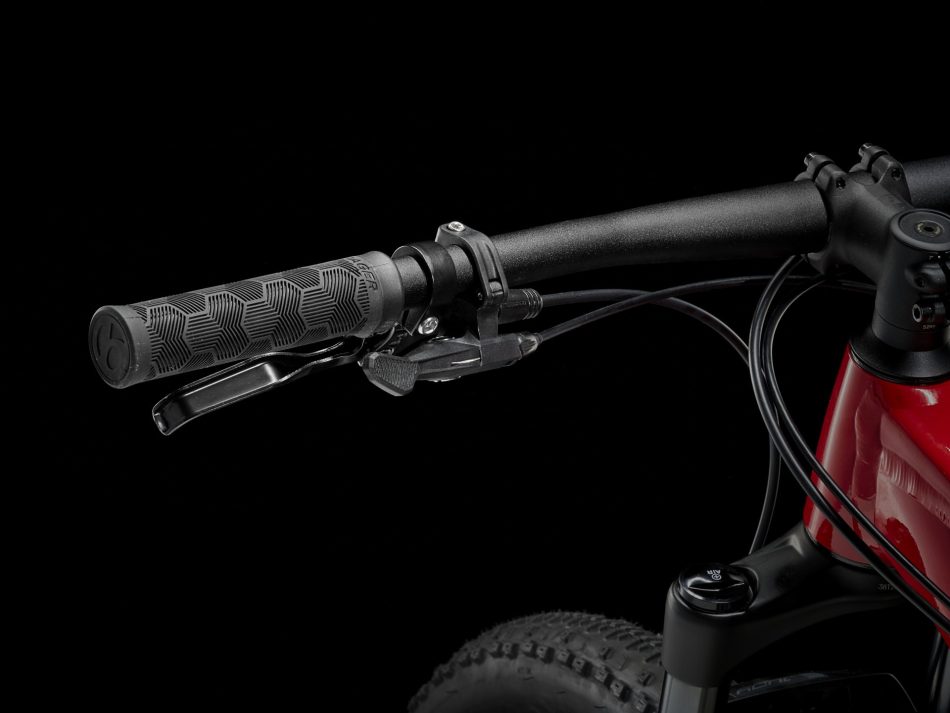

Grips: Bontrager XR Trail Comp, nylon lock-on
*Stem
Size S: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Size M, ML: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Size L: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size XL: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length

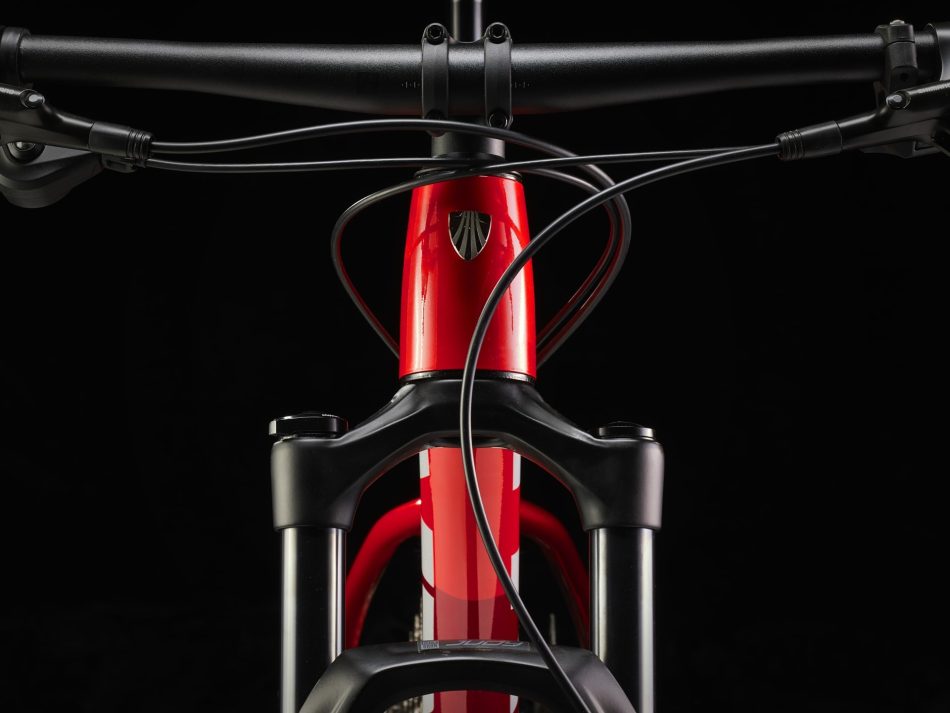

Head set: Semi-integrated, loose ball bearing, 1-1/8″ top, 1.5″ bottom
Brake: Shimano MT200 hydraulic disc
*Brake rotor
Size S, M, ML, L, XL: Shimano RT10, CenterLock, 160 mm
Size L, XL: Shimano RT10, CenterLock, 180 mm
Brake Set: Shimano MT200 hydraulic disc
Rotor size: Max brake rotor sizes – Frame: 180 mm, Fork: see fork manufacturer
Weight
Weight : M – 13.56 kg / 29.9 lbs (with TLR sealant, no tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
