SPECIFICATIONS
Frameset

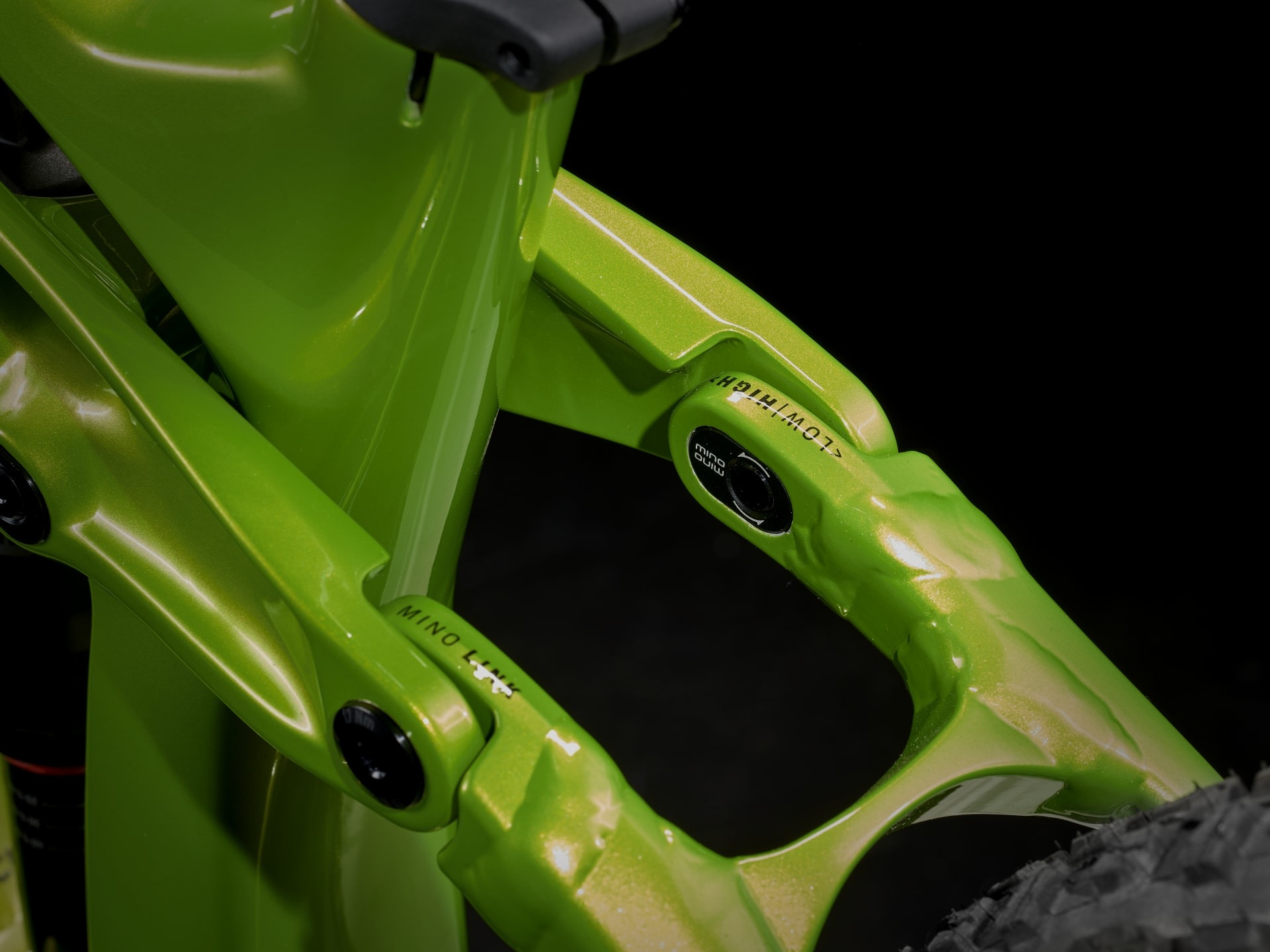

Frame: OCLV Mountain Carbon main frame, 1.8” lower head tube, Bosch System Controller-compatible, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9 mm seat tube, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru-axle, 150 mm travel
Fork: RockShox Domain RC, DebonAir, Motion Control damper, lockout, 1.8″ oversized tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel

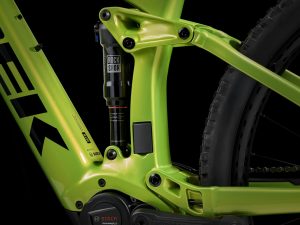

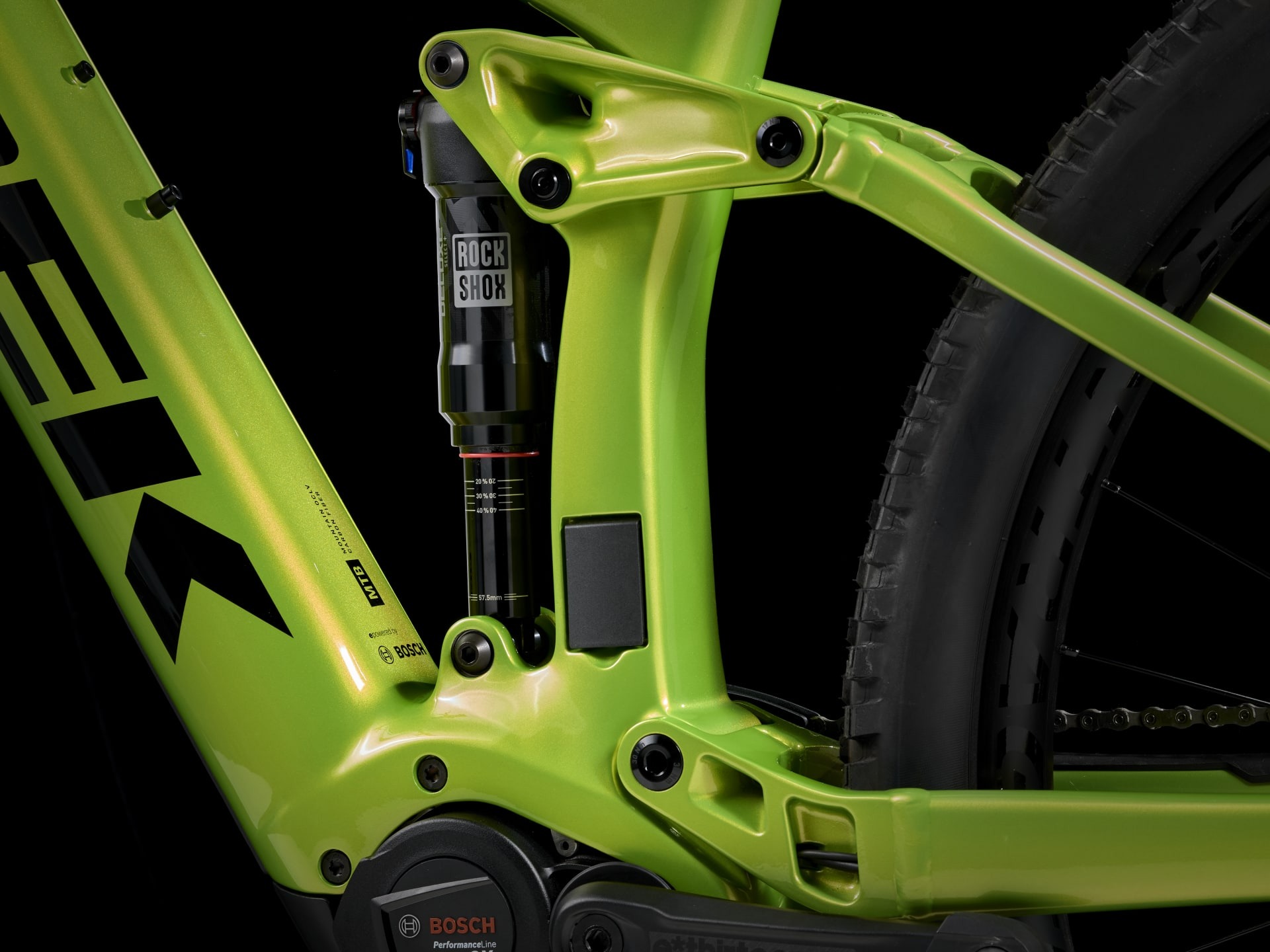

Shock: RockShox Deluxe Select+ RT, 230 mm x 57.5 mm
Max compatible fork travel 170 mm (580 mm axle-to-crown)
Wheels
Wheel front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29″
Wheel rear: Bontrager Line Comp 30, High Strength 6000 Series Aluminium rim, Tubeless-Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle, 29″
Skewer rear: Bontrager Switch thru-axle, removable lever

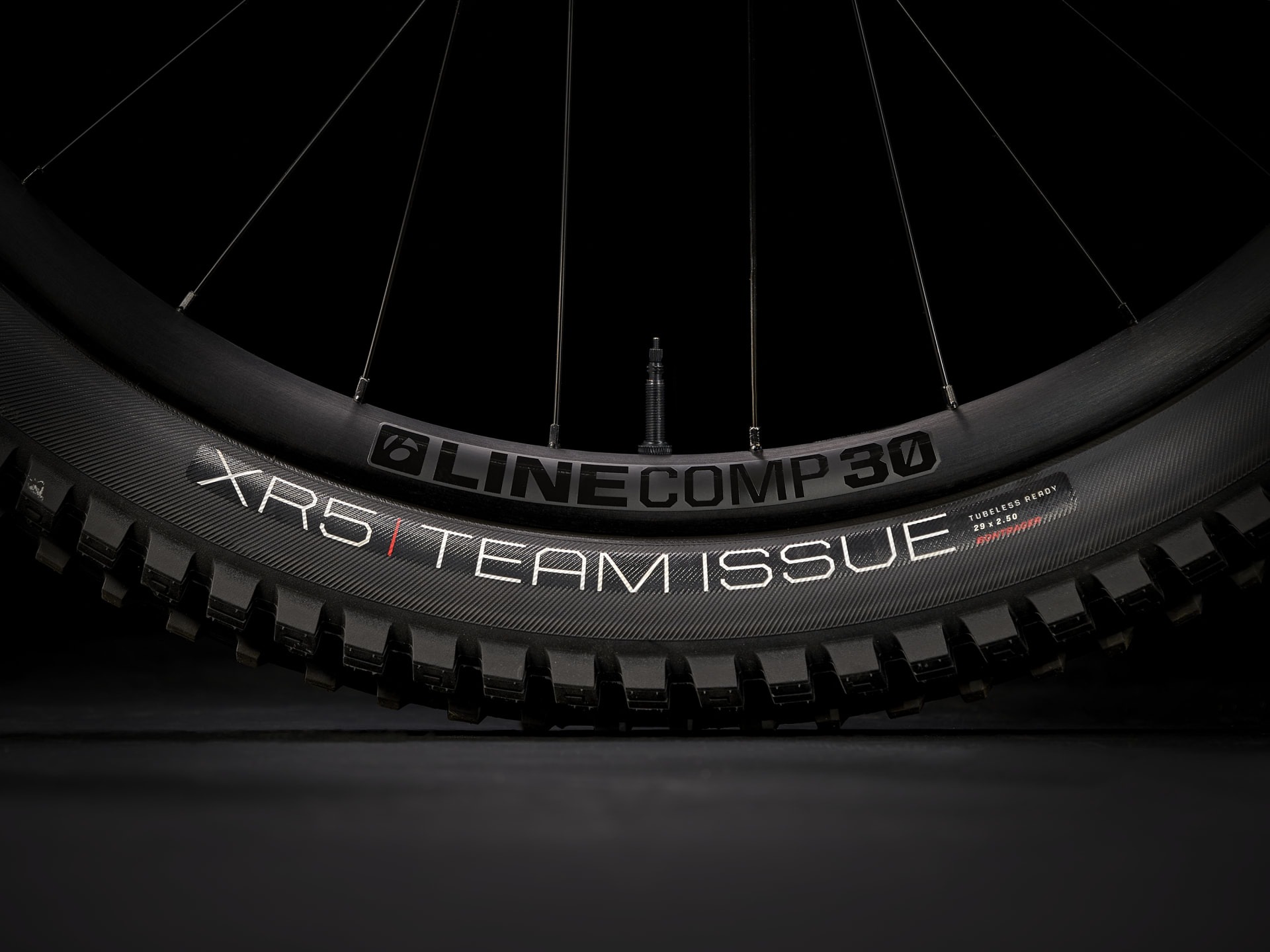

Tyre: Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29×2.50″
E-system
*Battery
Size S: Bosch PowerTube 625 Wh, smart system
Size M, L, XL: Bosch PowerTube 750 Wh, smart system
*Charger
Size S, M, L, XL: Bosch standard 2A, 110V, smart system
Size S, M, L, XL: Bosch standard 4A, 110 V, smart system

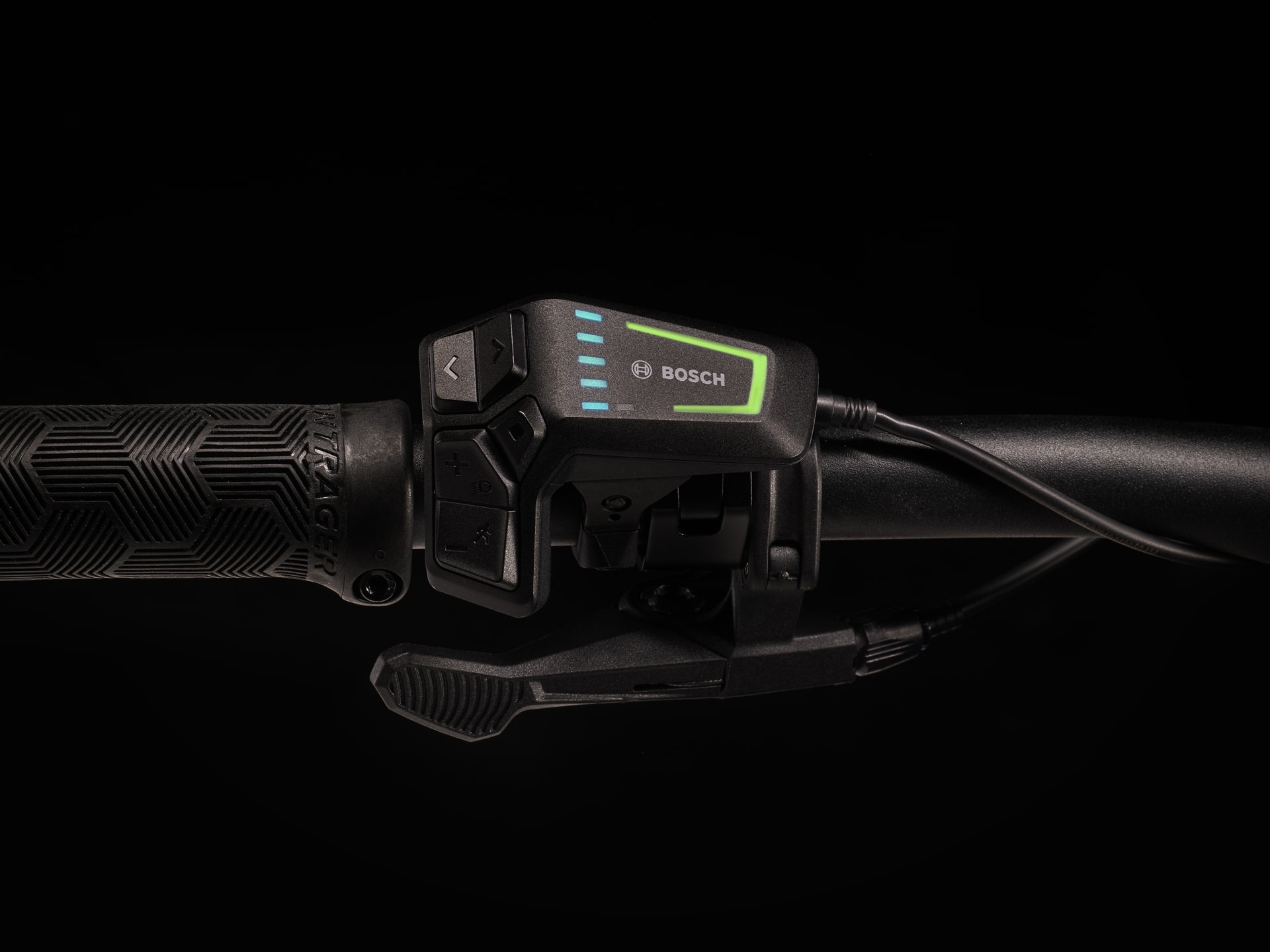

Controller: Bosch System Controller BRC3100, smart system
Computer: Bosch LED remote, smart system

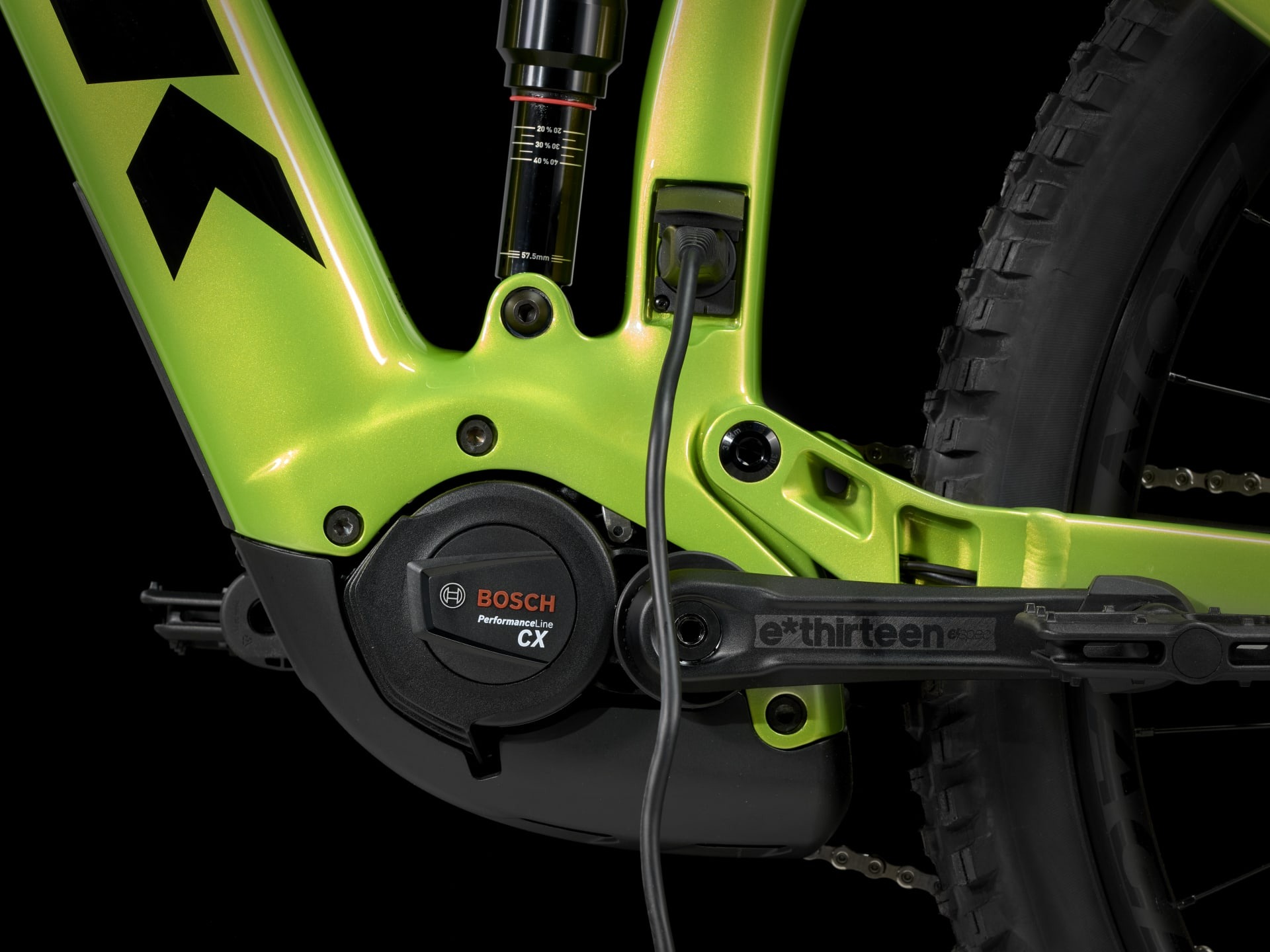

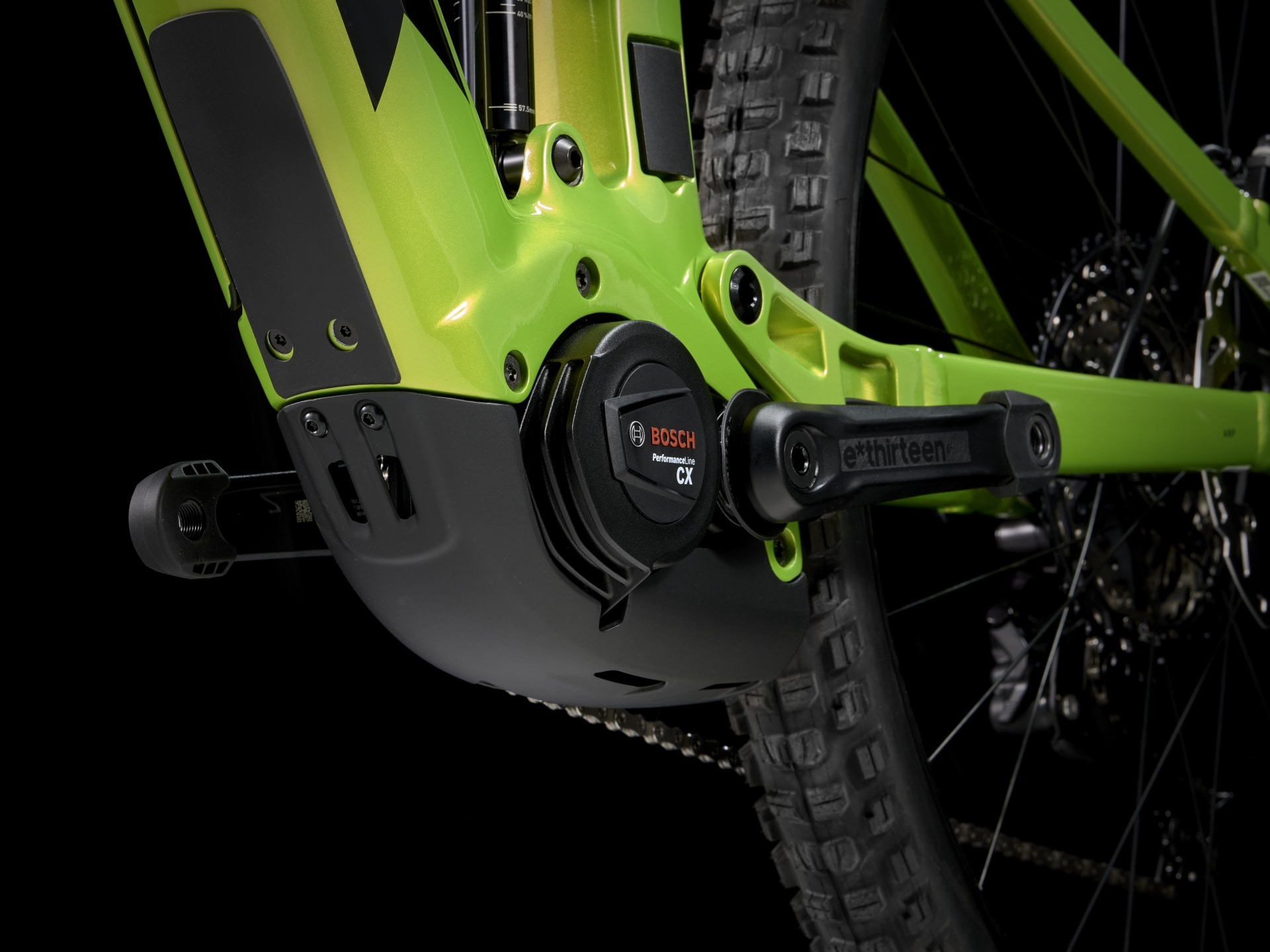

Motor: Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
Drivetrain
Shifter: Shimano SLX M7100, 12-speed

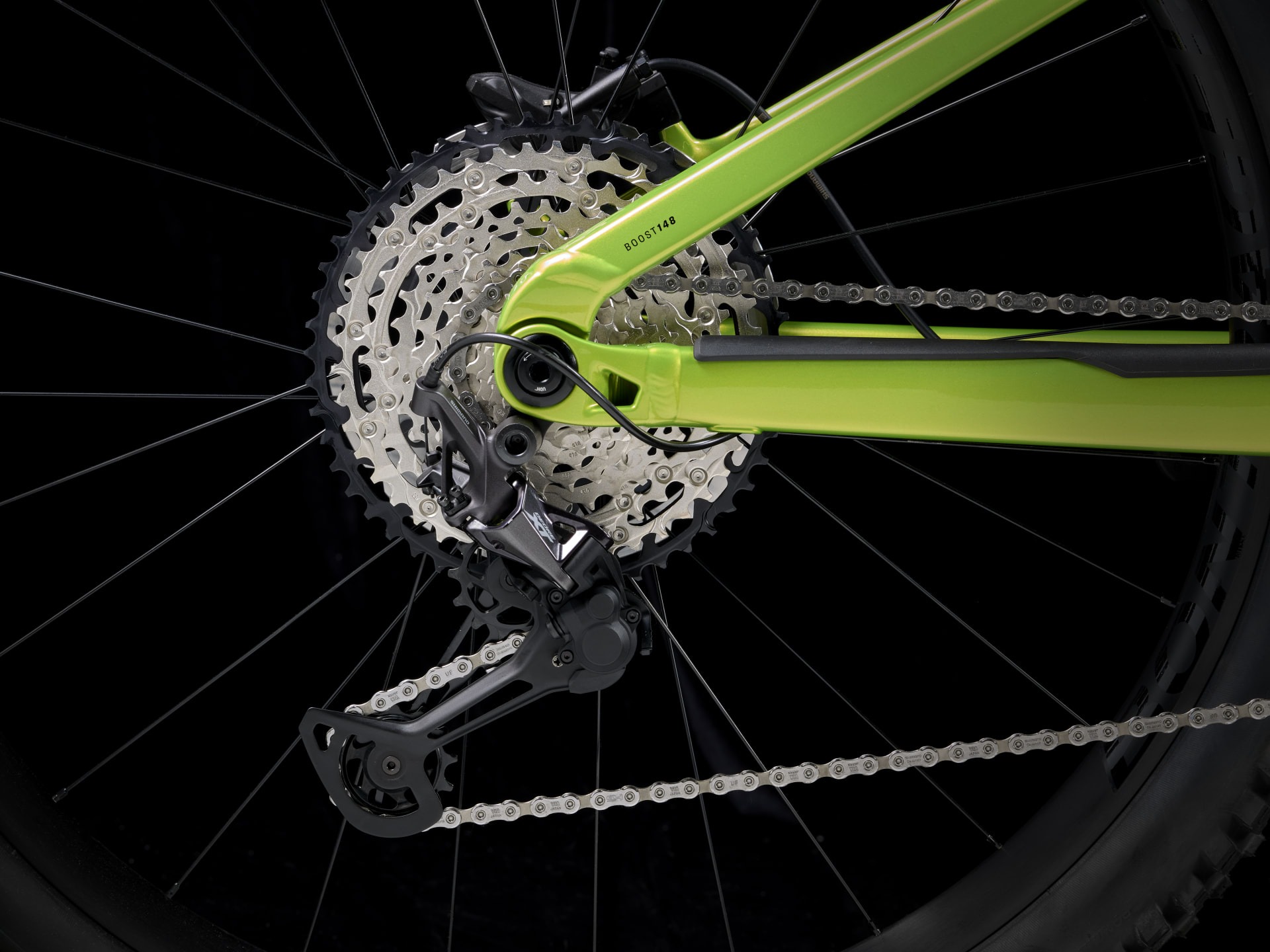

Rear derailleur: Shimano XT M8100, long cage
Crank: E*thirteen E*spec Plus, 165 mm length
Crank Arm: E*thirteen E*spec Plus, 160 mm length
Chainring: E*thirteen E*spec, 34T alloy, 55 mm chainline
Cassette: Shimano SLX M7100, 10-51T, 12-speed
Chain: Shimano SLX M7100, 12-speed
Pedal: VP-536 nylon platform
Max. chainring size: 34T
Components
*Saddle
Size S, M, L, XL: Bontrager Arvada, hollow chromoly rails, 138 mm width
Size M, L, XL: Bontrager Arvada, steel rails, 138 mm width
Size L, XL: Bontrager Verse P3, chromoly rails
*Seatpost
Size S: TranzX JD-YSP39, 100 mm travel, internal routing, 34.9 mm
Size M: TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm
Size L, XL: TranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm
Size L, XL: Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length
Handlebar: Bontrager Comp, alloy, 31.8 mm, 15 mm rise, 780 mm width
Grips: Bontrager XR Trail Comp, nylon lock-on
Stem: Bontrager Rhythm Comp, 31.8 mm, 0-degree, 50 mm length
Head Set: Knock Block Integrated, cartridge bearing, 1-1/8” top, 1.8” bottom
Brake: Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
*Brake rotor
Size S, M, L, XL: Shimano RT76, 6-bolt, 203 mm
Size L, XL: Shimano RT86, 6-bolt, 203 mm
Rotor size: Max brake rotor sizes – Frame: 200mm, Fork: see fork manufacturer
Weight M – 24.28 kg / 53.53 lbs (with TLR sealant, no tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer’s suggested retail prices.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
*Please note – spec applies to all sizes unless listed separately
