SPECIFICATIONS
*Please note – spec applies to all sizes unless listed separately
Frameset
Frame: OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel
Fork: RockShox Pike Select+, DebonAir spring, Charger 3 RC2 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 130 mm travel

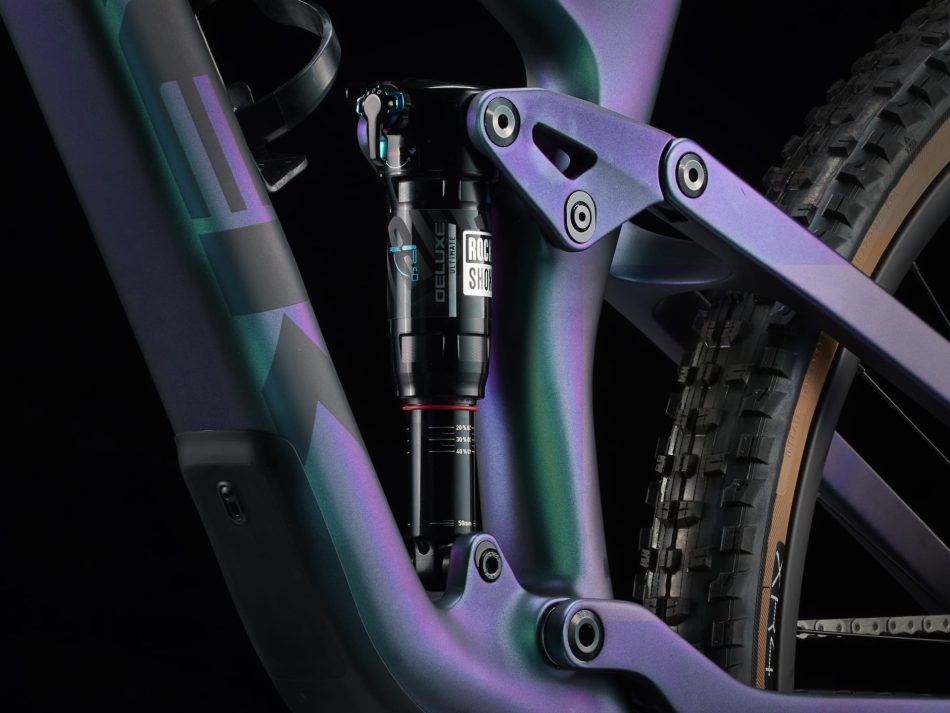

Shock: RockShox Deluxe Ultimate RCT, 185 mm x 50 mm
Max compatible fork travel: 130mm (541mm axle-to-crown)
Wheels
*Wheel front:
XS: Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5″
S, M, ML, L, XL: Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29″
*Wheel rear:
XS: Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru axle, 27.5″
S, M, ML, L, XL: Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru axle, 29″
Hub front: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Skewer rear: Bontrager Switch thru-axle, removable lever
Rim: Bontrager Line Elite 30, Tubeless-Ready
*Tyre
XS: Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5 x 2.40”
S, M, ML, L, XL: Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29×2.40″
Max tyre size: Frame: 29×2.50″, Fork: See manufacturer
E-system: SRAM eTap battery pack (with charger)
Drivetrain
Shifter: SRAM AXS POD
Rear Derailleur: SRAM GX Eagle AXS, T-Type

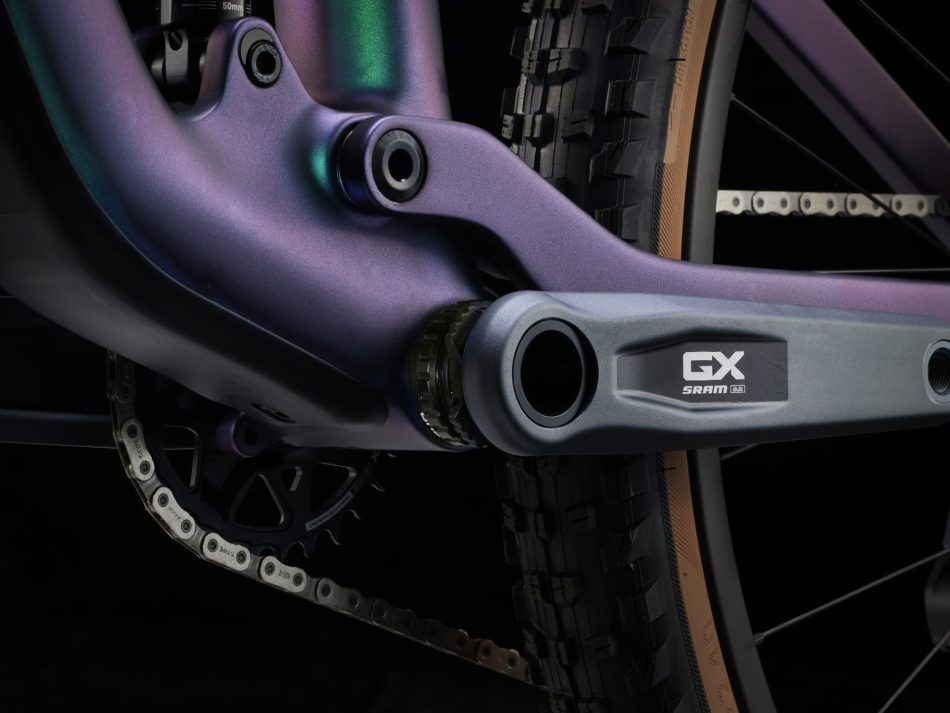

Crank: SRAM GX Eagle, T-Type, DUB, 30T, 55 mm chain line, 170 mm length
Bottom Bracket: SRAM DUB MTB Wide, 73 m, BSA threaded
Cassette: SRAM Eagle XS-1275, T-Type,10-52, 12-speed
Chain: SRAM GX Eagle, T-Type, 12-speed
Max. chainring size 1x: 36T round, 34T oval, min 28T
Components
Saddle: Bontrager Arvada, austenite rails, 138 mm width
*Seatpost:
XS, S: Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 34.9 mm, 345 mm length
M, ML: Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 34.9 mm, 440 mm length
L: Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 485 mm length
XL: Bontrager Line Elite Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 550 mm length
*Handlebar/stem (integrated)

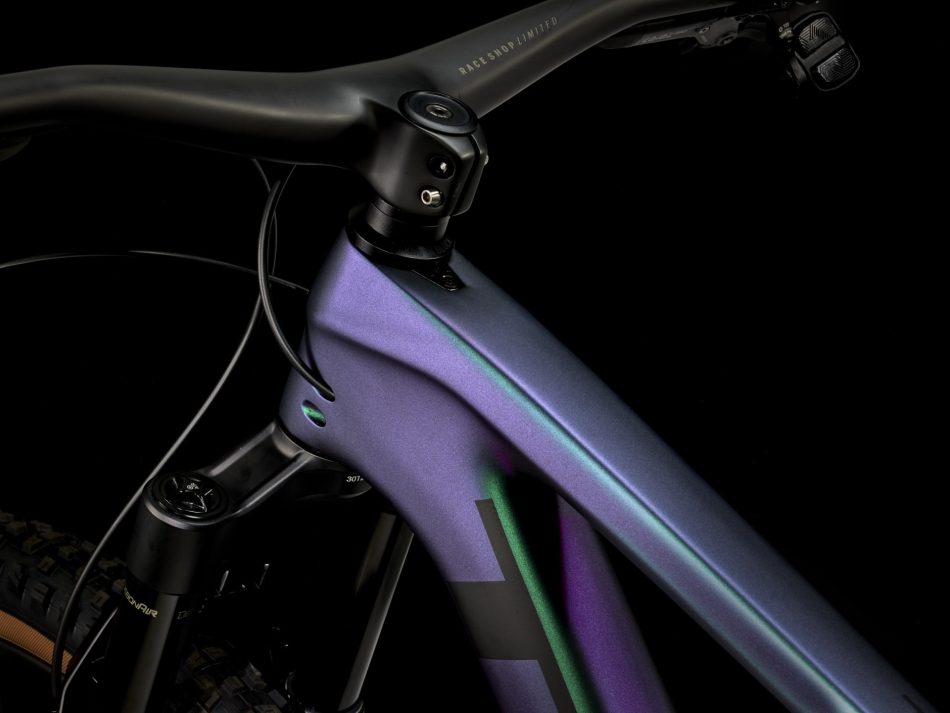

XS, S: Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35 mm stem length
M, ML, L, XL: Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length
Grips: Bontrager XR Trail Elite, nylon lock-on
Head set: Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8″ top, 1.5″ bottom
Brake: SRAM Level Bronze 4-piston hydraulic disc
Brake rotor: SRAM CentreLine, 6-bolt, round-edge, 180 mm
Rotor size: Max brake rotor sizes – Frame: 180 mm, Fork: see fork manufacturer
Accessories
Bag: Bontrager BITS Internal Frame Storage Bag
Weight
Weight: M – 12.98 kg / 28.62 lbs (with TLR sealant, no tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
